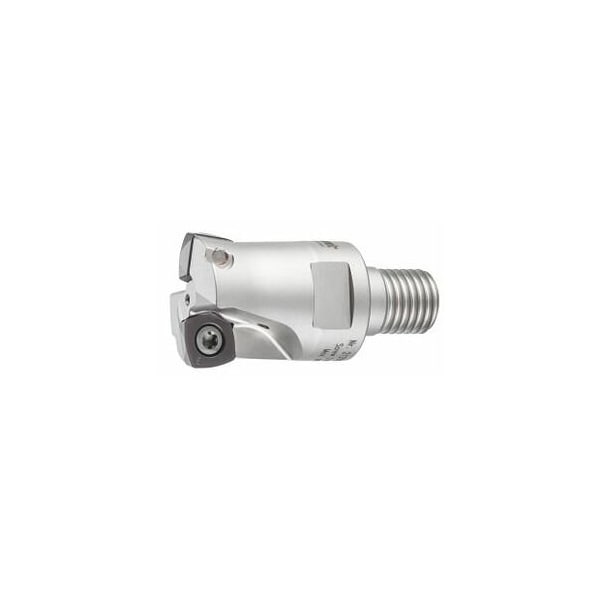

FeedKing High Feed Rate Milling Cutter, with Threaded Shank, 32mm Diameter, 2 Inserts
- Mfr # 212905 32/2
- Zoro # G716120235
product price:Â
$
344.99
/ea
Free Shipping & Returns
Key Features
Series
FeedKing
Cutting Angle
12°
Cutting Dia.
32 mm
Overall Length
42 mm
Number of Teeth
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212905 32/2
- Zoro #
- G716120235
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 32 mm
- Overall Length
- 42 mm
- Max. Cutting Depth
- 1.8 mm
- Diameter 1
- 17 mm
- Ramping Length for αmax
- 10.5 mm
- Diameter 3
- 11 mm
- Free length
- 42 mm
- Diameter 2
- 28.7 mm
Details
- Item
- Copy mill
- Series
- FeedKing
- Cutting Angle
- 12°
- Number of Teeth
- 2
- Insert Screw
- 219800 (20IP; 5.7 Nm)
- Circular interpolation milling ap
- 1.85 mm
- Shank Type
- with threaded shank
- Coolant Through
- Yes
- Mounting Thread
- M16
- Circular Interpolation Milling - Dmax
- 62 mm
- Circular Interpolation Milling - Dmin
- 43 mm
- Fz Helix
- 0.7
- Ramping Angle
- 1.64°
- Tool Exchange
- PowerCard
- Dia/No. of Cutting Edges
- 32 mm/2
- Axial Rake Angle
- 5°
Description
Version: Dynamic cutting edge geometry for highest feed rates. Extremely smooth cutting due to self-stabilising insert bedding. Optimised geometry for reduced cutting forces- thereby reducing the stress on the main spindle. Advantage: Particularly cost-effective due to exceptionally sturdy 4-edge inserts. Note: When working with extensions- always use internal cooling. Use GARANT torque screwdriver TQ No. 211750 size 5.7 with bit No. 674252 size 20IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 2D1 h6: 17 mmD2: 28.7 mmD3: 11 mm maximum cutting depth ap max: 1.8 mm Overall length Ltot: 42 mm
