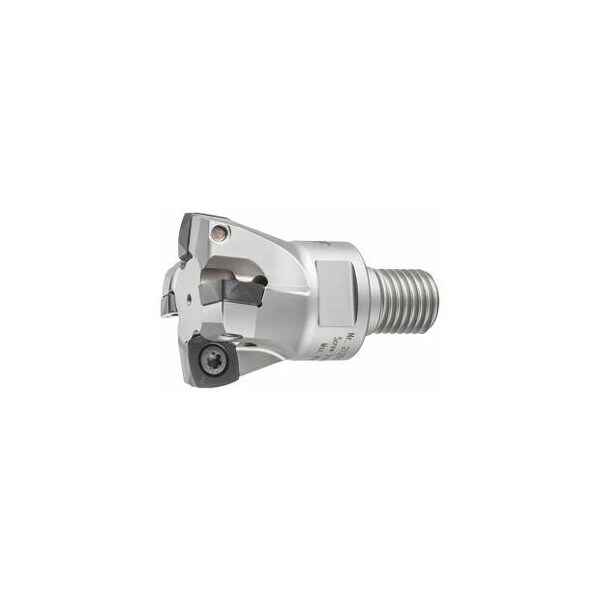

FeedKing High Feed Rate Milling Cutter, with Threaded Shank, 42mm Diameter, 4 Inserts
Mfr # 212905 42/4
Zoro # G416120252
product price: $404.99
/ea
Free Shipping & Returns
Key Features
Insert Screw
219800 (20IP; 5.7 Nm)
Number of Teeth
4
Overall Length
42 mm
Cutting Angle
12°
Cutting Dia.
42 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
212905 42/4
Zoro #
G416120252
UPC #
-
Country of Origin
Italy
Dimensions
Overall Length
42 mm
Cutting Dia.
42 mm
Free length
42 mm
Ramping Length for αmax
20.5 mm
Max. Cutting Depth
1.8 mm
Diameter 3
21 mm
Diameter 1
17 mm
Diameter 2
28.7 mm
Details
Insert Screw
219800 (20IP; 5.7 Nm)
Number of Teeth
4
Cutting Angle
12°
Item
Copy mill
Series
FeedKing
Dia/No. of Cutting Edges
42 mm/4
Tool Exchange
PowerCard
Axial Rake Angle
5°
Circular Interpolation Milling - Dmax
82 mm
Coolant Through
Yes
Shank Type
with threaded shank
Fz Helix
0.7
Ramping Angle
0.84°
Mounting Thread
M16
Circular interpolation milling ap
1.85 mm
Circular Interpolation Milling - Dmin
63 mm
Description
Version: Dynamic cutting edge geometry for highest feed rates. Extremely smooth cutting due to self-stabilising insert bedding. Optimised geometry for reduced cutting forces- thereby reducing the stress on the main spindle. Advantage: Particularly cost-effective due to exceptionally sturdy 4-edge inserts. Note: When working with extensions- always use internal cooling. Use GARANT torque screwdriver TQ No. 211750 size 5.7 with bit No. 674252 size 20IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 4D1 h6: 17 mmD2: 28.7 mmD3: 21 mm maximum cutting depth ap max: 1.8 mm Overall length Ltot: 42 mm
