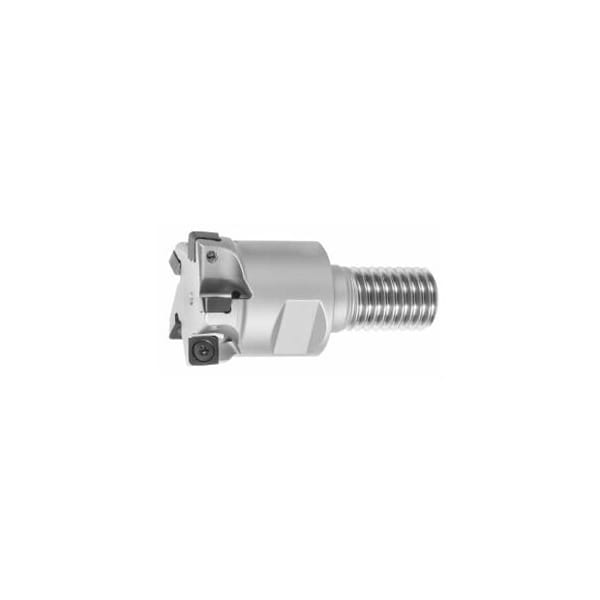

Finishing Mill, with Threaded Shank, for CPHX. Inserts, 20mm Diameter, 4 Inserts
Mfr # 212534 20/4
Zoro # G616120236
product price:Â
$
312.99
/ea
Free Shipping & Returns
Key Features
Number of Teeth
4
Cutting Dia.
20 mm
Insert Screw
219799 3 (7IP; 1.0 Nm)
Overall Length
30 mm
Coolant Through
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212534 20/4
- Zoro #
- G616120236
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Cutting Dia.
- 20 mm
- Overall Length
- 30 mm
- Free length
- 30 mm
- Diameter 1
- 10.5 mm
- Diameter 2
- 18 mm
- Max. Cutting Depth
- 2.5 mm
Details
- Item
- Copy mill
- Number of Teeth
- 4
- Insert Screw
- 219799 3 (7IP; 1.0 Nm)
- Coolant Through
- Yes
- Machining Strategy
- HPC
- Tool Exchange
- PowerCard
- Mounting Thread
- M10
- Shank Type
- with threaded shank
- Axial Rake Angle
- 0°
- Dia/No. of Cutting Edges
- 20 mm/4
Description
Version: Precision finish milling for extremely efficient en pre-finish machining and finish machining. Due to the revised wiper geometry- suitable for outstanding surface quality in ground finish standard. Extreme time saving available due to a large line skip and a high feed rate per tooth. Application: Typical tool for tool and die manufacturing. Note: GARANT torque screwdriver TQ No. 211750 size 1.0 with bit No. 674252 size 7IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 4D1 h6: 10.5 mmD2: 18 mm maximum cutting depth ap max: 2.5 mm Overall length Ltot: 30 mm Mounting thread M: M10
