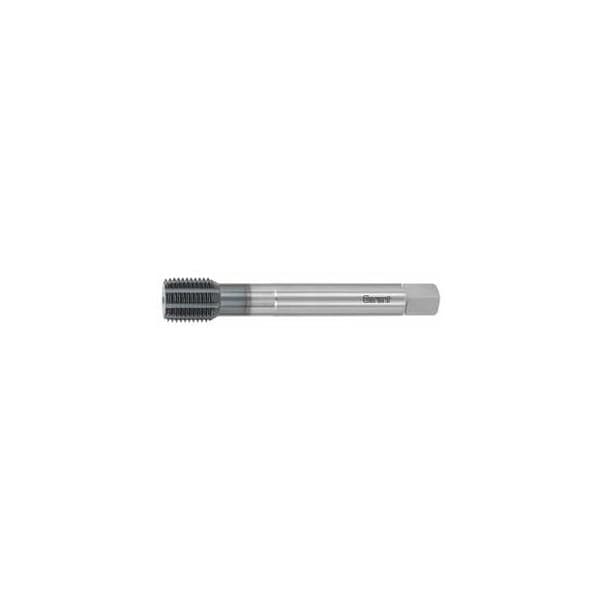

Fluteless tap, 1/8"-28, TiAlN, 6 Flutes
Mfr # 139425 G1/8
Zoro # G314389829
product price:Â
$
183.99
/ea
Free Shipping & Returns
Key Features
Tap Finish
TiAlN
Number of Flutes
6
Shank Dia.
7 mm
Standards
DIN 2189
Tap Material
HSS E PM
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 139425 G1/8
- Zoro #
- G314389829
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Tap Thread Size
- 1/8"-28
- Shank Dia.
- 7 mm
Details
- Item
- Fluteless tap
- Tap Finish
- TiAlN
- Number of Flutes
- 6
- Standards
- DIN 2189
- Tap Material
- HSS E PM
- Thread Type
- G
Description
DIN 2189 DIN 5156. With oil grooves, optimum lubrication effect even in deeper threads. GARANT Master Form Steel: The latest generation of high-performance fluteless taps, specially developed for use in steels. optimized polygon geometry for a lower torque. Multi-layer HIPIMS coating for high wear resistance. HSS-E-PM substrate for top process reliability. With internal coolant feed laterally from the grooves. Permits the longest possible tool life when machining through holes and blind holes. Application: For Whitworth parallel pipe threads DIN-ISO 228/1 threads that do not form a seal within the connection. Thread pitch: 0.907 mm Threads per inch: 28 Thread Dia. 9.73 mm Overall length L: 90 mm Shank Dia. Ds: 7 mm Shank square: 5.5 mm
