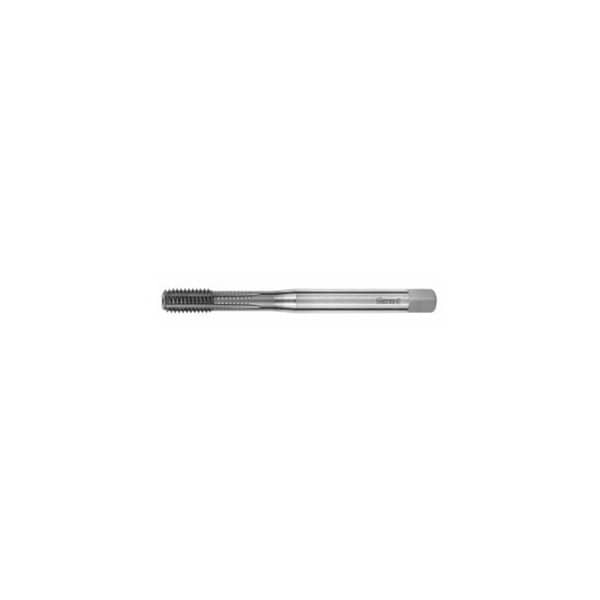

Fluteless tap, M2-0.4, TiAlN, 3 Flutes
Mfr # 139198 M2
Zoro # G114388848
product price:Â
$
74.34
/ea
Key Features
Tap Finish
TiAlN
Number of Flutes
3
Thread Type
M
Tap Material
HSS E PM
Shank Dia.
2.8 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 139198 M2
- Zoro #
- G114388848
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Tap Thread Size
- M2-0.4
- Shank Dia.
- 2.8 mm
- Overall Length
- 45
Details
- Item
- Fluteless tap
- Tap Finish
- TiAlN
- Number of Flutes
- 3
- Thread Type
- M
- Tap Material
- HSS E PM
- Standards
- DIN 2174
Description
The latest generation of high-performance fluteless taps, specially developed for use in steel materials. optimized polygon geometry for a lower torque. Multi-layer HIPIMS coating for high wear resistance. HSS-E-PM substrate for exceptional process reliability. DIN 2174 DIN 371 less than or equal to M10, DIN 376 M12. Tolerance class: ISO 2X/6HX. Form E lead-in 1.5 2 turns for deep threads with short run-out. The thread is tapped almost to the bottom of the hole. Tolerance class: ISO 2X 6HX Thread pitch: 0.4 mm Overall length L: 45 mm Shank Dia. Ds: 2.8 mm Shank square: 2.1 mm Tapping hole Dia. guide value: 1.85 mm
