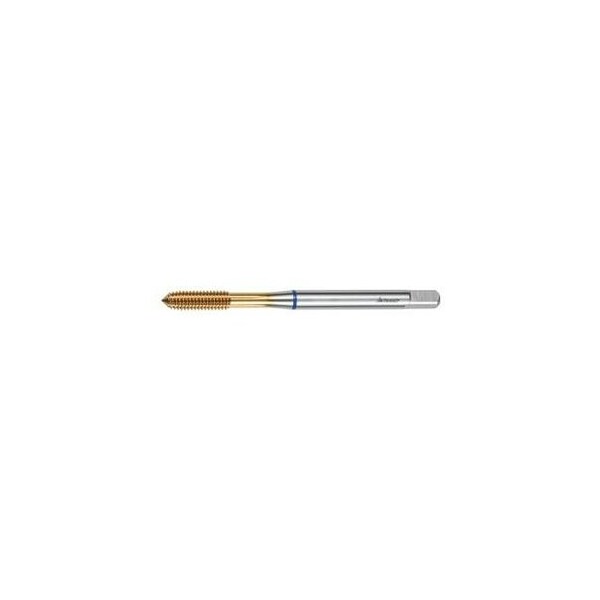

Fluteless tap, M2-0.4, TiN, 3 Flutes
Mfr # 139175 M2
Zoro # G314388884
product price:Â
$
72.75
/ea
Key Features
Tap Finish
TiN
Number of Flutes
3
Thread Type
M
Overall Length
45
Standards
DIN 2174
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 139175 M2
- Zoro #
- G314388884
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Tap Thread Size
- M2-0.4
- Overall Length
- 45
- Shank Dia.
- 2.8 mm
Details
- Item
- Fluteless tap
- Tap Finish
- TiN
- Number of Flutes
- 3
- Thread Type
- M
- Standards
- DIN 2174
- Tap Material
- HSS E PM
Description
DIN 2174 DIN 371 less than or equal to M10, DIN 376 M12. With oil grooves, optimum lubrication effect even in deeper threads. Tolerance class: ISO 2X/6HX. The innovative polygon form permits a wide application spectrum. The multi-function layer structure achieves maximum service life even in high-tensile materials. Tolerance class: ISO 2X 6HX Thread pitch: 0.4 mm Overall length L: 45 mm Shank Dia. Ds: 2.8 mm Shank square: 2.1 mm Tapping hole Dia. guide value: 1.85 mm
