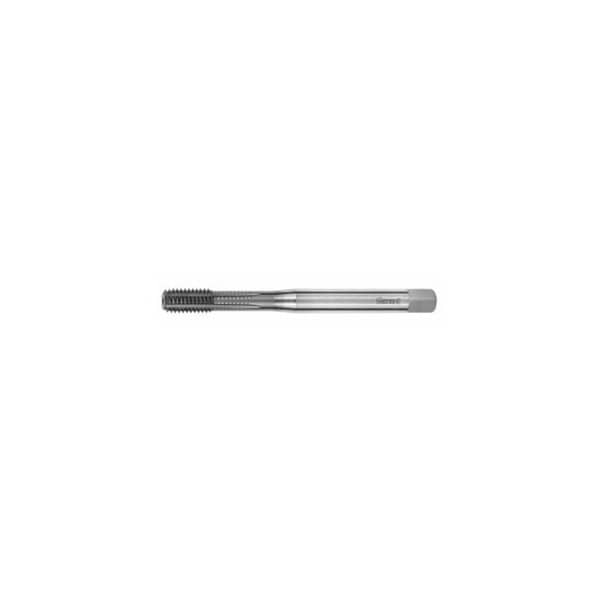

Fluteless tap, M5-0.8, TiAlN, 5 Flutes
Mfr # 139202 M5
Zoro # G714388736
product price:Â $103.99
/ea
Free Shipping & Returns
Key Features
Tap Finish
TiAlN
Number of Flutes
5
Overall Length
70
Tap Material
HSS E PM
Thread Type
M
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 139202 M5
- Zoro #
- G714388736
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Tap Thread Size
- M5-0.8
- Overall Length
- 70
- Shank Dia.
- 6 mm
Details
- Item
- Fluteless tap
- Tap Finish
- TiAlN
- Number of Flutes
- 5
- Tap Material
- HSS E PM
- Thread Type
- M
- Standards
- DIN 2174
Description
The latest generation of high-performance fluteless taps, specially developed for use in steel materials. optimized polygon geometry for a lower torque. Multi-layer HIPIMS coating for high wear resistance. HSS-E-PM substrate for exceptional process reliability. DIN 2174 DIN 371 less than or equal to M10, DIN 376 M12. With oil grooves, optimum lubrication effect even in deeper threads. Tolerance class: ISO 2X/6HX. With internal coolant feed laterally from the grooves. Permits the longest possible tool life when machining through holes and blind holes. Tolerance class: ISO 2X 6HX Thread pitch: 0.8 mm Overall length L: 70 mm Shank Dia. Ds: 6 mm Shank square: 4.9 mm Tapping hole Dia. guide value: 4.65 mm
