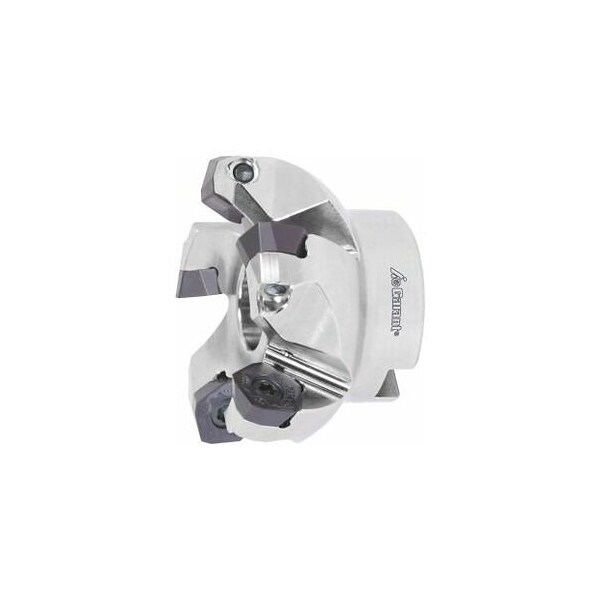

Hi5 High Feed Rate Milling Cutter, with Bore, 100mm Diameter, 8 Inserts
Mfr # 213110 100/8
Zoro # G916120349
product price:Â
$
726.99
/ea
Free Shipping & Returns
Key Features
Series
Hi5
Cutting Angle
90°
Cutting Dia.
100 mm
Insert Screw
219889 (20IP; 5.7 Nm)
Overall Length
50 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213110 100/8
- Zoro #
- G916120349
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 100 mm
- Overall Length
- 50 mm
- Diameter 3
- 80.78 mm
- Max. Cutting Depth
- 2.2 mm
- Mounting Bore Dia.
- 32 mm
Details
- Item
- Face mill
- Series
- Hi5
- Cutting Angle
- 90°
- Insert Screw
- 219889 (20IP; 5.7 Nm)
- Number of Teeth
- 8
- Dia/No. of Cutting Edges
- 100 mm/8
- Overhang
- 50 mm
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
- Shank Type
- with bore
Description
Description: Powerful and smooth-cutting high feed rate indexable face mill. Particularly smooth-running- due to unequal spacing of the teeth. Can also be used for semi-finishing. Cost-efficiency due to 5-edge inserts. Note: Use GARANT torque screwdriver TQ No. 211750 size 5.7 with bit No. 674252 size 20IP. Tool exchange: PowerCard Number of cutting edges Z: 8D3: 80.78 mm maximum cutting depth ap max: 2.2 mm Overall length Ltot: 50 mm Mounting bore : 32 mm suitable indexable insert: POMX 10T5.. Pack of insert screws: 219889 20IP- 5.7 Nm
