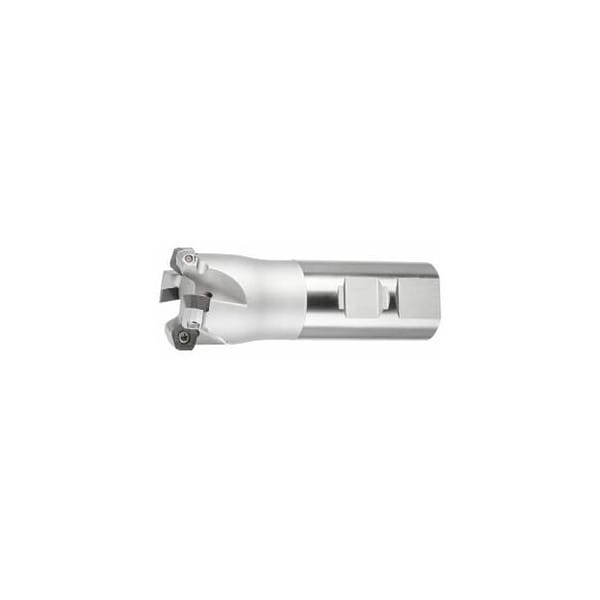

Hi5 High Feed Rate Milling Cutter, with Weldon Flat, 40mm Diameter, 4 Inserts
Mfr # 213200 40/4
Zoro # G516120336
product price:Â $418.99
/ea
Free Shipping & Returns
Key Features
Series
Hi5
Cutting Angle
90°
Cutting Dia.
40 mm
Overall Length
110 mm
Insert Screw
219884 (10IP; 2.2 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213200 40/4
- Zoro #
- G516120336
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 40 mm
- Overall Length
- 110 mm
- Shank Dia.
- 32 mm
- Max. Cutting Depth
- 1.4 mm
- Diameter 3
- 25.6 mm
Details
- Item
- Copy mill
- Series
- Hi5
- Cutting Angle
- 90°
- Insert Screw
- 219884 (10IP; 2.2 Nm)
- Number of Teeth
- 4
- Tool Exchange
- PowerCard
- Shank Type
- Weldon shank
- Dia/No. of Cutting Edges
- 40 mm/4
- Overhang
- 50 mm
- Coolant Through
- Yes
Description
Version: Particularly smooth-running- due to unequal spacing of the teeth. Note: Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size 10IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 4D3: 25.6 mm maximum cutting depth ap max: 1.4 mm Overhang L1: 50 mm Overall length Ltot: 110 mm ShankDs h6: 32 mm
