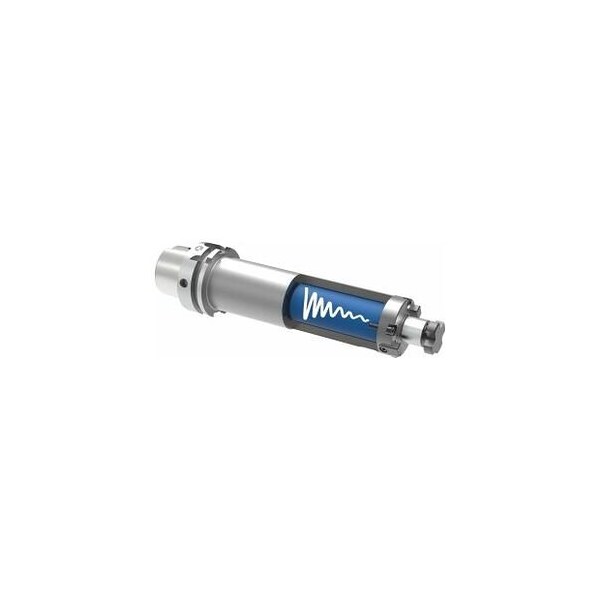

High-Performance Face Mill Arbor, HSK-A 100, Projection: 300, Clamping Diameter: 22mm
Mfr # 306698 22
Zoro # G414773580
product price:Â $8,464.99
/ea
Free Shipping & Returns
Key Features
Clamping Dia.
22 mm
Max. Speed
6000 min-1
Outside Dia.
48 mm
Shank Shape
A
Taper Size
HSK100A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 306698 22
- Zoro #
- G414773580
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Clamping Dia.
- 22 mm
- Outside Dia.
- 48 mm
- Taper Size
- HSK100A
- Milling Mandrel Length
- 19 mm
- Spigot Dia.
- 22 mm
Details
- Item
- Milling head arbor
- Max. Speed
- 6000 min-1
- Shank Shape
- A
- Projection
- 300 mm
- Vibration
- damped
- Machining Strategy
- HPC
- Concentricity
- ≤ 5 µm
- Standards
- DIN 6357
Description
Taper shank, spigot, and all contact surfaces are ground at the collar. With Balluff/RFID chip bore. Increased collar contact surface. Advantage: The heavy metal core specially matched to the Arbors gives optimum machining results even with long overhangs: Saves time, because allows use of the maximum machining parameters. Smooth running and thus perfect surface quality results. Saves costs, because tool life is increased. Less vibrational stress on the machine headstock. Supplied with: Cutter lock screw and drive dog. Optional extras: Special coolant pipe wrench No. 309840, coolant pipe No. 309880. Note: Balance quality G 6.3 dependent on the maximum operating speed. Overhang dimension A: 300 mm External Dia D: 48 mm Milling mandrel length L4: 19 mm maximum speed nmax: 6000 min-1
