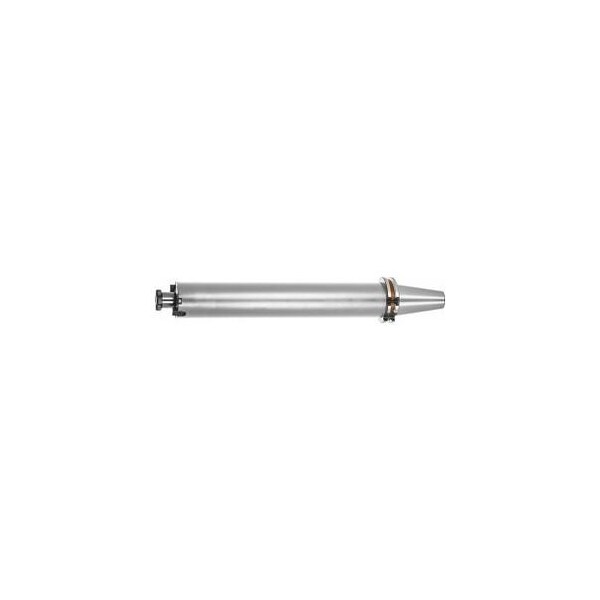

High-Performance Face Mill Arbor, SK40, Projection: 300, Clamping Diameter: 22mm
Mfr # 301102 22
Zoro # G114775013
product price:Â $6,793.99
/ea
Free Shipping & Returns
Key Features
Clamping Dia.
22 mm
Standards
ISO 7388-1; DIN 6357
Vibration
damped
Outside Dia.
48 mm
Machining Strategy
HPC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 301102 22
- Zoro #
- G114775013
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Clamping Dia.
- 22 mm
- Outside Dia.
- 48 mm
- Milling Mandrel Length
- 19 mm
- Spigot Dia.
- 22 mm
- Taper Size
- SK40
Details
- Standards
- ISO 7388-1; DIN 6357
- Item
- Milling head arbor
- Vibration
- damped
- Machining Strategy
- HPC
- Shank Shape
- AD
- Concentricity
- ≤ 5 µm
- Projection
- 300 mm
- Max. Speed
- 3500 min-1
- Balance Quality
- G 6.3 at 8,000 rpm
Description
Taper shank, spigot, and all contact surfaces are ground at the collar. With RFID / Balluffchip bore. Larger collar contact face. Advantage: The heavy metal core specially matched to the Arbors gives optimum machining results even with long overhangs: Saves time, because allows use of the maximum machining parameters. Smooth running and thus perfect surface quality results. Saves costs, because tool life is increased. Less vibrational stress on the machine headstock. Supplied with: Cutter lock screw and drive dog. Note: Balance quality G 6.3 dependent on the maximum operating speed. Further sizes on request. Overhang dimension A: 300 mm External Dia D: 48 mm Milling mandrel length L4: 19 mm maximum speed nmax: 3500 min-1
