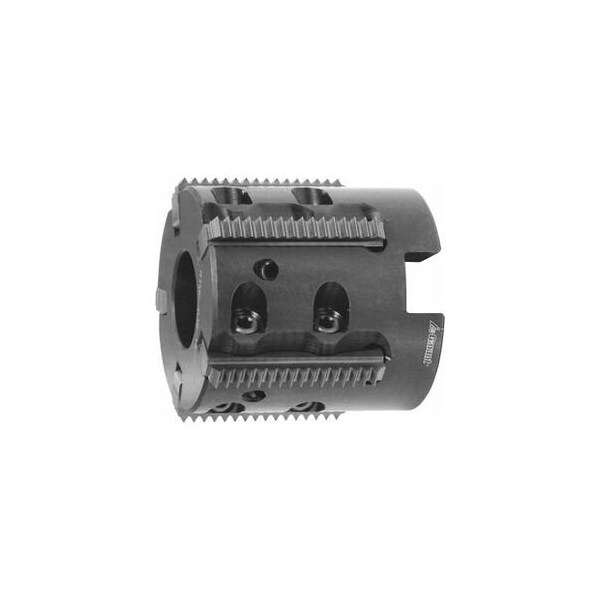

High-Performance Indexable Thread Milling Head, with Bore, 36mm Pitch
- Mfr # 218054 36
- Zoro # G216120339
product price:Â
$
1,321.99
/ea
Free Shipping & Returns
Key Features
Overall Length
33.5 mm
Coolant Through
Yes
Cutting Direction
left-hand and right-hand
Number of Teeth
5
Insert Size
25
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 218054 36
- Zoro #
- G216120339
- UPC #
- -
- Country of Origin
- Israel
Dimensions
- Overall Length
- 33.5 mm
- Insert Size
- 25
- Max. Cutting Depth
- 25 mm
- Mounting Bore Diameter H7
- 16 mm
- Effective Diameter
- 36 mm
Details
- Item
- Thread milling cutter
- Coolant Through
- Yes
- Cutting Direction
- left-hand and right-hand
- Number of Teeth
- 5
- Number of Clamping Slots
- 5
- Shank Type
- with bore
- For Hole Type
- Blind hole
- Fixing Screw
- 219926
Description
Version: HPC thread milling cutters for reduced machining times. Application: For general use on right-hand and left-hand internal and external threads. For threads in through holes and blind holes. Note: Thread mill No. 218050 sizes 17/26 and 17/36 suitable for pitches up to and including 2.5 mm. Thread mill No. 218050 sizes 30/65 suitable for pitches up to < 5. Through-coolant: yes Insert size: 25 Number of cutting edges Z: 5 Overall length Ltot: 33.5 mm Mounting boreH7: 16 mm Fixing screw: 219926
