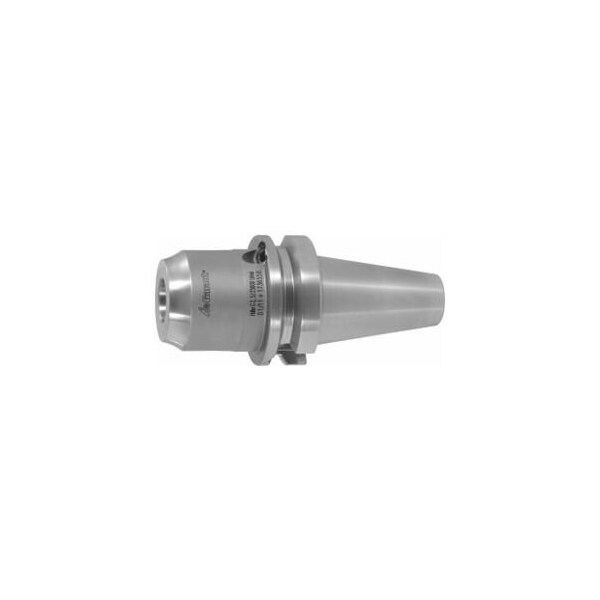

High Torque Chuck, BT 50 Short, Clamping Range: 32mm
Mfr # 303452 32
Zoro # G814825407
product price: $614.99
/ea
Free Shipping & Returns
Key Features
Clamping Dia.
32 mm
Outside Dia.
72 mm
Suitable Reducing Adapter
302180; 302175
Concentricity
≤ 3 µm
Projection
90 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
303452 32
Zoro #
G814825407
UPC #
-
Country of Origin
Germany
Dimensions
Clamping Dia.
32 mm
Outside Dia.
72 mm
Length (In.)
52 mm
Details
Suitable Reducing Adapter
302180; 302175
Concentricity
≤ 3 µm
Item
Hydraulic clamping chuck
Projection
90 mm
Shape
ADB
Taper
BT50
Balance Quality
G 2.5 at 25,000 rpm
Description
Very high overall stiffness due to optimized design. Axial length adjustment, adjustment travel 10 mm. Advantage: Maximum transmissible torque 550 Nm, version HT High Torque, for high process reliability. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Temperature resistance up to 120 DegC. Application: Especially for heavy-duty milling. Supplied with: Hexagon cross-bar wrench. Optional extras: Pull studs PS No. 308760 308802. Note: Caution in the case of extra-long tools and TPC machining. Clamping Dia D1: 32 mm Overhang dimension A: 90 mm External Dia D: 72 mm Reach L1: 52 mm suitable reducing adapter: 302180, 302175
