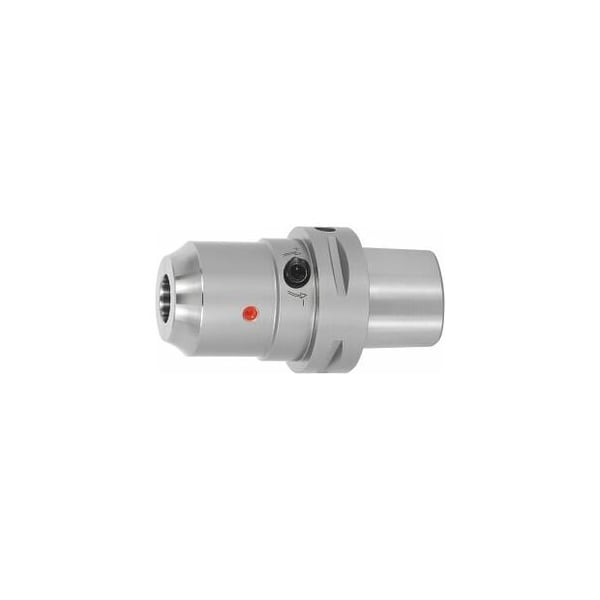

High Torque Hydraulic Chuck, Short, PSC63, Clamping Range: 20mm
Mfr # 308556 20
Zoro # G714774294
product price:Â $684.99
/ea
Free Shipping & Returns
Key Features
Taper Size
PSC63
Clamping Dia.
20 mm
Suitable Reducing Adapter
302160; 302155
Length (In.)
41 mm
Outside Dia.
49 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 308556 20
- Zoro #
- G714774294
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Taper Size
- PSC63
- Clamping Dia.
- 20 mm
- Length (In.)
- 41 mm
- Outside Dia.
- 49 mm
Details
- Suitable Reducing Adapter
- 302160; 302155
- Balance Quality
- G 2.5 at 25,000 rpm
- Item
- Hydraulic clamping chuck
- Projection
- 80 mm
- Concentricity
- ≤ 3 µm
Description
With RFID/Balluffchip bore. Axial length adjustment adjustment 10 mm available. Flexible due to use of reducing sleeves. Very high total rigidity due to optimized design. Application: Maximum transmissible torque 550 Nm, version HT High Torque. For drilling, reaming and milling. For rough machining when milling. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Optional extras: Boring bar shanks No. 302150, 302155, 302160 and 302165. Machining strategy: HPC Clamping Dia D1: 20 mm Overhang dimension A: 80 mm External Dia D: 49 mm Reach L1: 41 mm suitable reducing adapter: 302160, 302155
