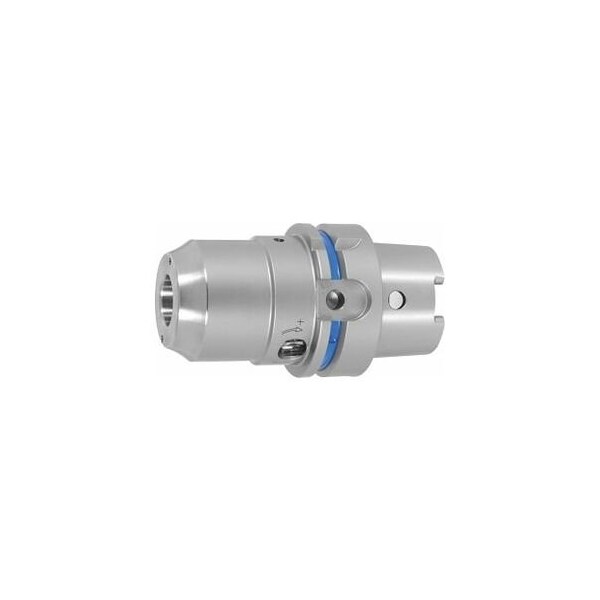

High Torque Hydraulic Chuck with Cooling Channel Bores, HSK-A 63 Short, Clamping Range: 12mm
Mfr # 307553 12
Zoro # G314773307
product price:Â
$
649.99
/ea
Free Shipping & Returns
Key Features
Length (In.)
54 mm
Taper Size
HSK63A
Outside Dia.
52.5 mm
Concentricity
≤ 3 µm
Balance Quality
G 2.5 at 25,000 rpm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 307553 12
- Zoro #
- G314773307
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Length (In.)
- 54 mm
- Taper Size
- HSK63A
- Outside Dia.
- 52.5 mm
- Clamping Dia.
- 12 mm
Details
- Concentricity
- ≤ 3 µm
- Item
- Hydraulic clamping chuck
- Balance Quality
- G 2.5 at 25,000 rpm
- Shape
- A
- Adjustment Travel
- 10 mm
- Projection
- 80 mm
- Suitable Reducing Adapter
- 302140; 302135
Description
Very high total rigidity due to optimized design. With RFID/Balluffchip bore. Axial length adjustment, adjustment travel 10 mm. Flexible due to use of reducing sleeves. Advantage: Very high transmitted torque 550 Nm, providing high process reliability. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Application: Especially for heavy-duty milling. For clamping tools with shank tolerance h6. Supplied with: Hexagon cross-bar wrench. Optional extras: Coolant tube No. 309880, socket wrench No. 309890, reducing adapters No. 302135 - 302187. Note: Caution in the case of extra-long tools and TPC machining. Clamping Dia D1: 12 mm Overhang dimension A: 80 mm External Dia D: 52.5 mm Reach L1: 54 mm Adjustment travel V: 10 mm suitable reducing adapter: 302140, 302135
