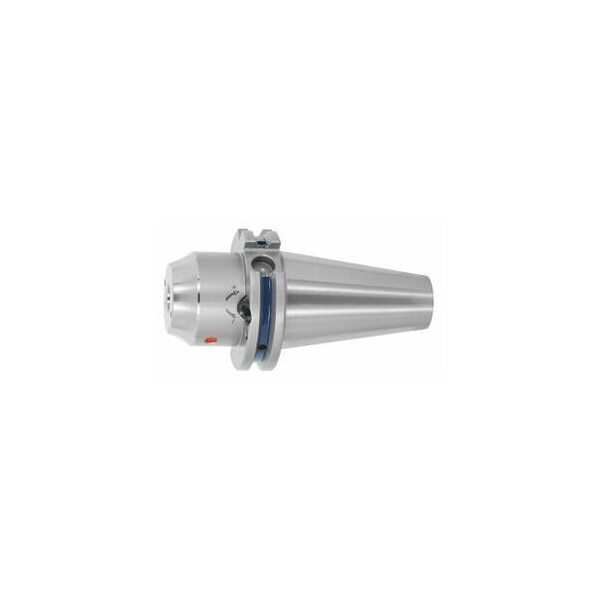

High Torque Hydraulic Chuck with Cooling Channel Bores, SK 40, Clamping Range: 12mm
- Mfr # 302031 12
- Zoro # G114775471
product price:Â
$
631.99
/ea
Free Shipping & Returns
Key Features
Suitable Reducing Adapter
302140; 302135
Outside Dia.
42 mm
Concentricity
≤ 3 µm
Cooling Channel Bore
Yes
Standards
ISO 7388-1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 302031 12
- Zoro #
- G114775471
- UPC #
- -
- Country of Origin
- Germany
- Suitable Reducing Adapter
- 302140; 302135
- Concentricity
- ≤ 3 µm
- Cooling Channel Bore
- Yes
- Standards
- ISO 7388-1
- Shape
- ADB
- Projection
- 50 mm
- Balance Quality
- G 2.5 at 25,000 rpm
- Item
- Hydraulic clamping chuck
Dimensions
- Outside Dia.
- 42 mm
- Length (In.)
- 31 mm
- Clamping Dia.
- 12 mm
- Taper Size
- SK40
Description
Very high total rigidity due to optimized design. With RFID/Balluffchip bore. Axial length adjustment adjustment 10 mm available. Flexible due to use of reducing sleeves. Application: For drilling, reaming and for light and heavy-duty machining when milling. Maximum transmissible torque 550 Nm, version HT High Torque. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Optional extras: Pull studs PS No. 308600 308806, PS wrenches No. 308820 - 308835, Reducing adapters No. 302135 302187. Note: V = Maximum adjustment range! Caution in the case of extra-long tools and TPC machining. Clamping Dia D1: 12 mm Overhang dimension A: 50 mm External Dia D: 42 mm Reach L1: 31 mm suitable reducing adapter: 302140, 302135
