Shop GARANT

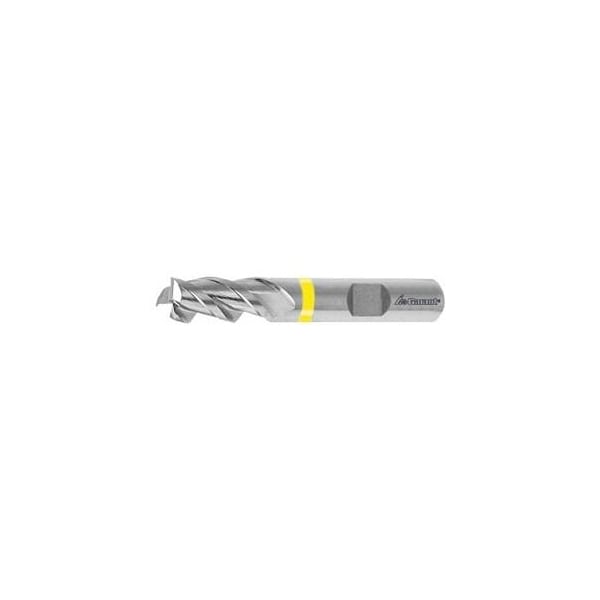

HSS-Co8 End Mill for Aluminum, Uncoated, 11 mm

  • Mfr # 191320 11

  • Zoro # G814380906

product price:  $35.59
/ea

Key Features

Material - Machining
High Speed Steel
Cutter Dia.
11 mm
Overall Length
79 mm
Shank Dia.
12 mm
Coolant Through
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
191320 11
Zoro #
G814380906
UPC #
-
Country of Origin
Japan

Dimensions

Cutter Dia.
11 mm
Overall Length
79 mm
Shank Dia.
12 mm
Depth of Cut
22 mm (side milling); 11 mm (slot milling from solid)
Length of Cut
22 mm
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Slot Milling From Solid
11 mm (slot milling from solid)

Details

Material - Machining
High Speed Steel
Coolant Through
No
Flutes
3
Direction of infeed
horizontal, oblique and vertical
End Mill Style
Square
Type of Product
End Mill
Shank Tolerance
h6
Standard
DIN 844 B
Feed Fz For Slot Milling in Short-Chipping Aluminium
0.029 mm
Finish
uncoated
Type
W
Shank
DIN 1835 B to h6
Color Ring
yellow
Corner Chamfer Angle
90 Degrees
Helix Angle
42 Degrees
Correction Factor Fz
1.25

Description

Center cutting teeth for plunging. Eccentric relief ground. Wide, precision ground chip flutes. Extremely fine workpiece surfaces due to precisely ground cutting edges. Special rake angle for aluminium. Note: For milling keyways.
