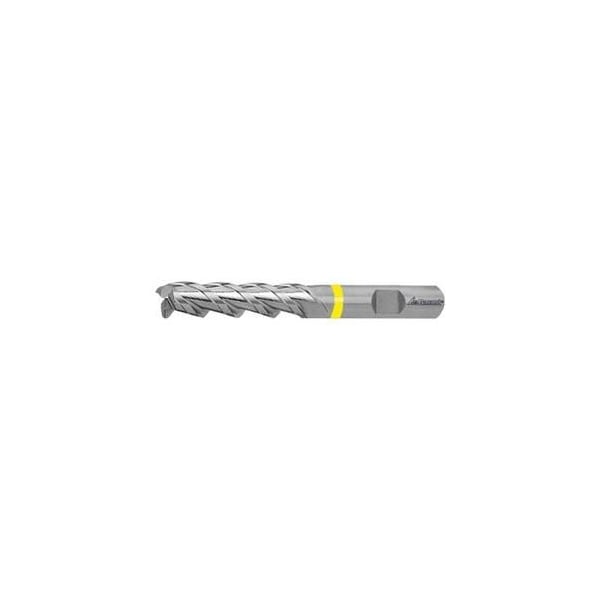

HSS-Co8 End Mill for Aluminum, Uncoated, 8 mm
- Mfr # 191340 8
- Zoro # G314371596
product price:Â
$
34.15
/ea
Key Features
Material - Machining
High Speed Steel
Cutter Dia.
8 mm
Overall Length
88 mm
Shank Dia.
10 mm
Finish
uncoated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 191340 8
- Zoro #
- G314371596
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Cutter Dia.
- 8 mm
- Overall Length
- 88 mm
- Shank Dia.
- 10 mm
- Length of Cut
- 38 mm
- Depth of Cut
- 38 mm (side milling); 4 mm (slot milling from solid)
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 4 mm (slot milling from solid)
- Tolerance Nominal Diameter
- e8
- Min. Cutting Depth
- 0.01 mm
Details
- Material - Machining
- High Speed Steel
- Finish
- uncoated
- Flutes
- 3
- Type of Product
- End Mill
- Type
- W
- Coolant Through
- No
- Shank
- DIN 1835 B to h6
- Direction of infeed
- horizontal, oblique and vertical
- Feed Fz For Slot Milling in Short-Chipping Aluminium
- 0.024 mm
- Standard
- DIN 844 B
- Corner Chamfer Angle
- 90 Degrees
- End Mill Style
- Square
- Color Ring
- yellow
- Shank Tolerance
- h6
- Helix Angle
- 42 Degrees
- Correction Factor Fz
- 1.25
Description
Center cutting teeth for plunging. Eccentric relief ground. Wide, precision ground chip flutes. Extremely fine workpiece surfaces due to precisely ground cutting edges. Special rake angle for aluminium. Note: For milling keyways.
