Shop GARANT

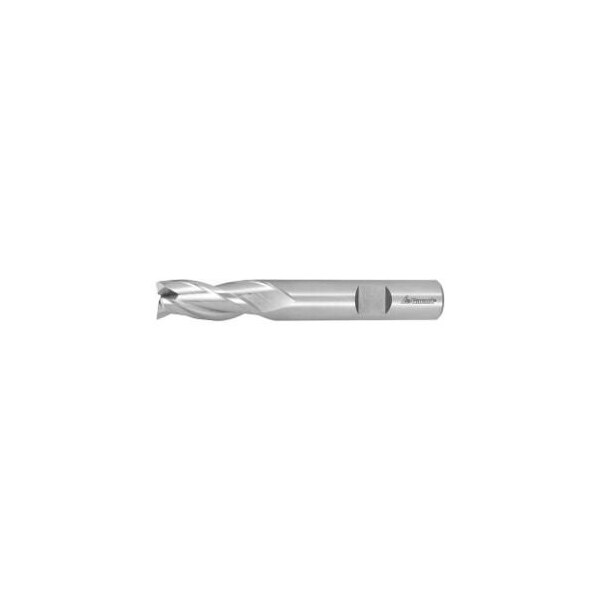

HSS-Co8 End Mill, Uncoated, 13 mm

  • Mfr # 191200 13

  • Zoro # G014378574

product price:
$
39.19
/ea

Key Features

Material - Machining
Cobalt High Speed Steel
Cutter Dia.
13 mm
Overall Length
83 mm
Shank Dia.
12 mm
Shank Tolerance
h6
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
191200 13
Zoro #
G014378574
UPC #
-
Country of Origin
Japan

Dimensions

Cutter Dia.
13 mm
Overall Length
83 mm
Shank Dia.
12 mm
Depth of Cut
26 mm (side milling); 13 mm (slot milling from solid)
Length of Cut
26 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Slot Milling From Solid
13 mm (slot milling from solid)
Min. Cutting Depth
0.01 mm

Details

Material - Machining
Cobalt High Speed Steel
Shank Tolerance
h6
Direction of infeed
horizontal, oblique and vertical
Correction Factor Fz
1.25
Standard
DIN 844 B
Color Ring
without
Type
N
Flutes
3
Shank
DIN 1835 B to h6
Finish
uncoated
Helix Angle
30 Degrees
Type of Product
End Mill
End Mill Style
Square
Corner Chamfer Angle
90 Degrees
Coolant Through
No

Description

Center cutting teeth for plunging. Eccentric relief ground. Note: Suitable for use as a slot drill tolerance e8 or an end mill. 50 % higher metal removal rate than 2 flute slot drills. Larger flutes than multi-flute end mills good for soft material. For milling keyways.
