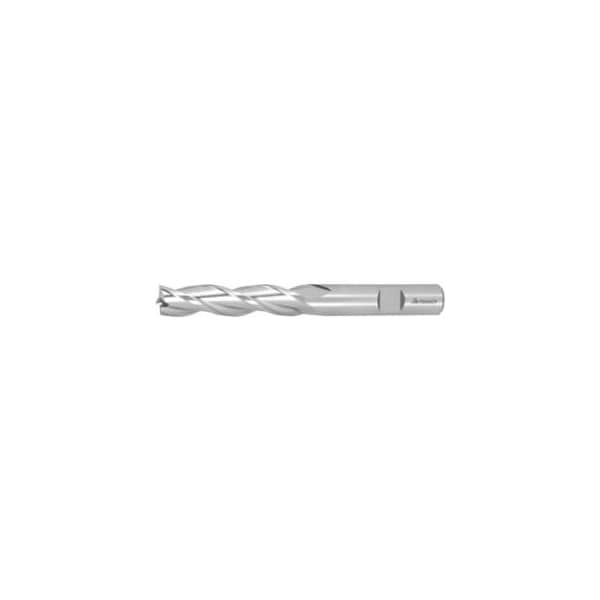

HSS-Co8 End Mill, Uncoated, 20 mm
- Mfr # 191280 20
- Zoro # G314380215
product price:Â
$
80.35
/ea
Key Features
Material - Machining
Cobalt High Speed Steel
Cutter Dia.
20 mm
Overall Length
141 mm
Shank Dia.
20 mm
Flutes
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 191280 20
- Zoro #
- G314380215
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Cutter Dia.
- 20 mm
- Overall Length
- 141 mm
- Shank Dia.
- 20 mm
- Depth of Cut
- 75 mm (side milling); 10 mm (slot milling from solid)
- Length of Cut
- 75 mm
- Min. Cutting Depth
- 0.01 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 10 mm (slot milling from solid)
- Tolerance Nominal Diameter
- e8
Details
- Material - Machining
- Cobalt High Speed Steel
- Flutes
- 3
- Type
- N
- Coolant Through
- No
- Helix Angle
- 30 Degrees
- Standard
- DIN 844 B
- Shank Tolerance
- h6
- Color Ring
- without
- Direction of infeed
- horizontal, oblique and vertical
- Type of Product
- End Mill
- Correction Factor Fz
- 1.25
- Corner Chamfer Angle
- 90 Degrees
- Finish
- uncoated
- End Mill Style
- Square
- Shank
- DIN 1835 B to h6
Description
Center cutting teeth for plunging. Eccentric relief ground. Note: Suitable for use as a slot drill tolerance e8 or an end mill. 50 % higher metal removal rate than 2 flute slot drills. Larger flutes than multi-flute end mills good for soft material. For milling keyways.
