Shop GARANT

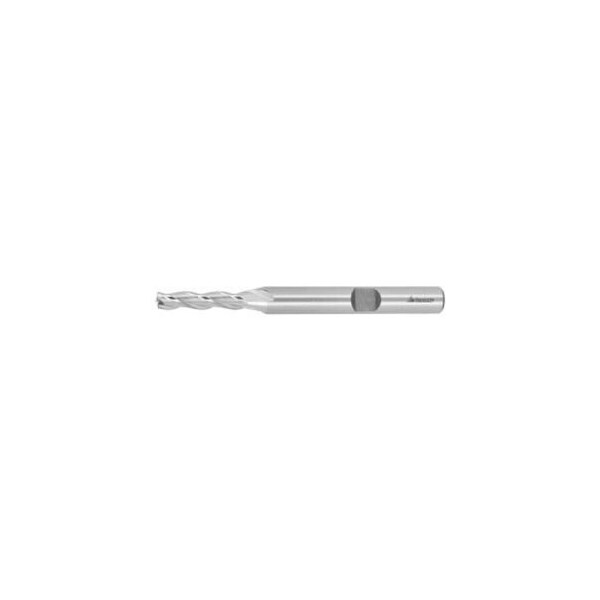

HSS-Co8 End Mill, Uncoated, 3.5 mm

  • Mfr # 191280 3,5

  • Zoro # G914380066

product price:  $22.59
/ea

Key Features

Material - Machining
High Speed Steel
Cutter Dia.
3.5 mm
Overall Length
59 mm
Shank Dia.
6 mm
Corner Chamfer Angle
90 Degrees
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
191280 3,5
Zoro #
G914380066
UPC #
-
Country of Origin
Japan

Dimensions

Cutter Dia.
3.5 mm
Overall Length
59 mm
Shank Dia.
6 mm
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
1.75 mm (slot milling from solid)
Tolerance Nominal Diameter
e8
Depth of Cut
15 mm (side milling); 1.75 mm (slot milling from solid)
Length of Cut
15 mm

Details

Material - Machining
High Speed Steel
Corner Chamfer Angle
90 Degrees
End Mill Style
Square
Direction of infeed
horizontal, oblique and vertical
Color Ring
without
Shank Tolerance
h6
Correction Factor Fz
1.25
Type of Product
End Mill
Standard
DIN 844 B
Helix Angle
30 Degrees
Finish
uncoated
Shank
DIN 1835 B to h6
Coolant Through
No
Flutes
3
Type
N

Description

Center cutting teeth for plunging. Eccentric relief ground. Note: Suitable for use as a slot drill tolerance e8 or an end mill. 50 % higher metal removal rate than 2 flute slot drills. Larger flutes than multi-flute end mills good for soft material. For milling keyways.
