Shop GARANT

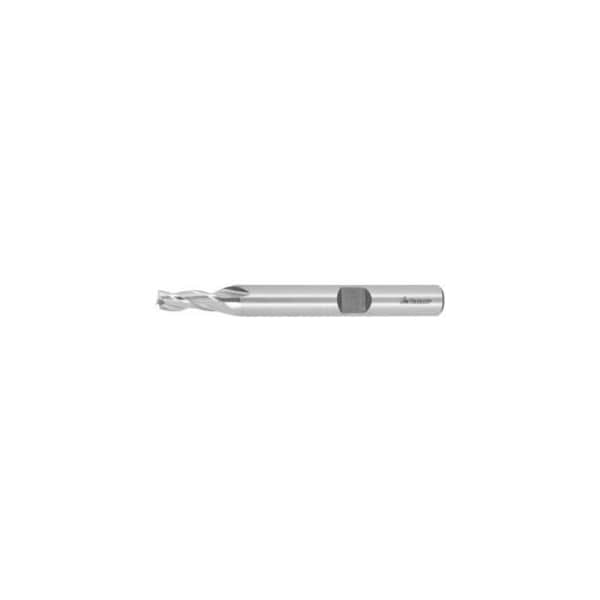

HSS-Co8 End Mill, Uncoated, 5 mm

  • Mfr # 191200 5

  • Zoro # G514379439

product price:
$
14.35
/ea

Key Features

Material - Machining
Cobalt High Speed Steel
Cutter Dia.
5 mm
Overall Length
57 mm
Shank Dia.
6 mm
Correction Factor Fz
1.25
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
191200 5
Zoro #
G514379439
UPC #
-
Country of Origin
Japan

Dimensions

Cutter Dia.
5 mm
Overall Length
57 mm
Shank Dia.
6 mm
Min. Cutting Depth
0.2 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Slot Milling From Solid
5 mm (slot milling from solid)
Length of Cut
13 mm
Depth of Cut
13 mm (side milling); 5 mm (slot milling from solid)

Details

Material - Machining
Cobalt High Speed Steel
Correction Factor Fz
1.25
Corner Chamfer Angle
90 Degrees
Helix Angle
30 Degrees
Color Ring
without
Type of Product
End Mill
Shank Tolerance
h6
Standard
DIN 844 B
Flutes
3
Coolant Through
No
Shank
DIN 1835 B to h6
Type
N
Finish
uncoated
Direction of infeed
horizontal, oblique and vertical
End Mill Style
Square

Description

Center cutting teeth for plunging. Eccentric relief ground. Note: Suitable for use as a slot drill tolerance e8 or an end mill. 50 % higher metal removal rate than 2 flute slot drills. Larger flutes than multi-flute end mills good for soft material. For milling keyways.
