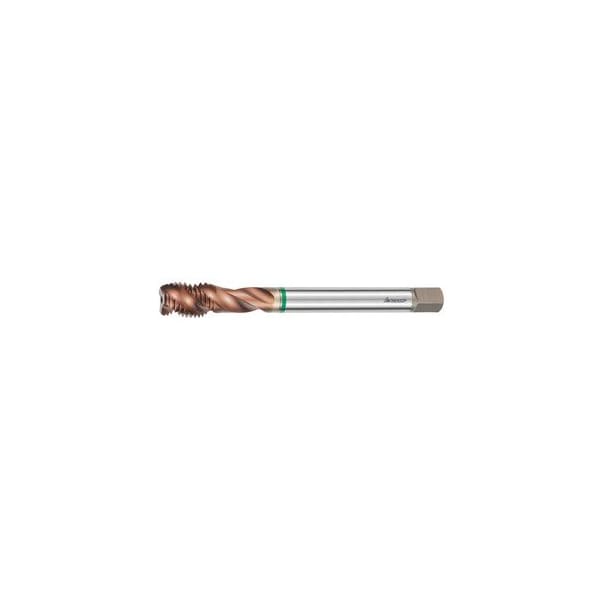

HSS-E-PM Blind Hole Machine Tap, 12X1 Tap Thread Size, AlTiX Coated
Mfr # 137160 12X1
Zoro # G509574207
product price:Â
$
68.35
/ea
Key Features
Shank Dia.
9 mm
Tap Material
HSS E PM
Standard
Thread Standard - DIN 13, DIN 374
Overall Length
100 mm
Thread Direction
Right-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 137160 12X1
- Zoro #
- G509574207
- UPC #
- 4045197900821
- Country of Origin
- Japan
- Item
- Tap
- Tap Material
- HSS E PM
- Standard
- Thread Standard - DIN 13, DIN 374
- Thread Direction
- Right-Hand
- Number of Flutes
- 3
- Application
- up to 2.5xD for Blind Holes
- Thread Type
- Metric Fine
- Thread type
- MF
- Number of Teeth
- 3
- Taper Lead Form
- C
- Taper Lead Angle
- 13.5°
- Ring Color
- Green
- Thread Pitch
- 1 mm
- Shank Type
- Plain Shank with h9
- Flank Angle
- 60°
- Tolerance Class
- ISO 2X 6HX
- Finish
- AlTiX
- Series
- Master Tap
- Thread Standards
- DIN 13
- Helix Angle
- 40°
- Tool Type
- Machine tap for dynamic machining
- Coolant Through
- No
- Number of Clamping Slots
- 3
- Tolerance
- ISO 2X 6HX
Description
GARANT Master Tap Universal taps- designed for use in a wide spectrum of materials with high process reliability. - HSS-E-PM tool material for maximum wear resistance. - Reduced coefficient of friction due to the new high-performance coating. - Special geometry for optimum swarf evacuation. Thread type: MF Tool material: HSS E PM Standard: DIN 374 Tolerance class: ISO 2X 6HX Thread pitch: 1 mm Overall length L: 100 mm Shank dia Ds: 9 mm Shank square : 7 mm Tapping hole dia : 11 mm
