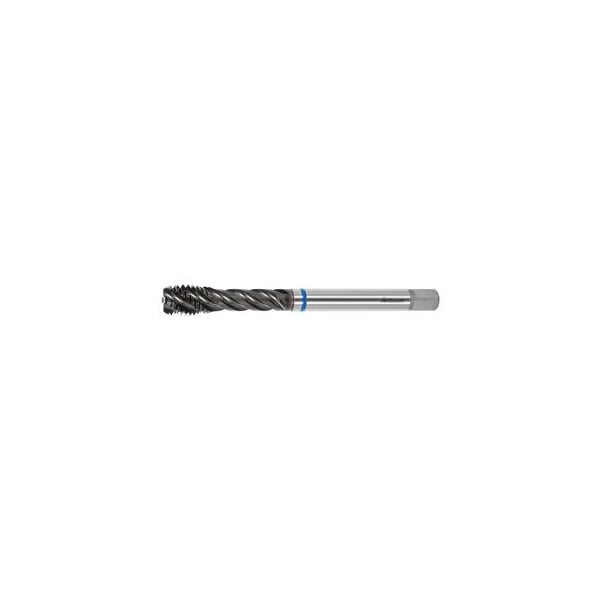

HSS-E-PM Blind Hole Machine Tap for Stainless Steel, M2 Tap Thread Size, TiAlN Coated
Mfr # 135732 M2
Zoro # G809574235
product price: $48.39
/eaKey Features
Shank Dia.
2.8 mm
Tap Material
HSS E PM
Standard
Thread Standard - DIN 13, DIN 371
Overall Length
45 mm
Thread Direction
right-hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
135732 M2
Zoro #
G809574235
UPC #
4062406075255
Country of Origin
Germany
Dimensions
Shank Dia.
2.8 mm
Overall Length
45 mm
Thread Length
5 mm
Thread Diameter
2 mm
Shank Square Size
2.1 mm
Thread Size
M2
Tapping Hole Diameter
1.6 mm
Description
High-performance tap- specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. The 45Deg helix angle of the flutes facilitates chip formation especially in ductile austenitic CrNi steels. - HSS-E-PM tool material for a high degree of wear resistance - The latest generation of TiALN multi-layer coating - Parameterised flute geometry for optimum chip formation and torsional rigidity Thread type: M Tool material: HSS E PM Standard: DIN 371 Tolerance class: ISO 2X 6HX Thread pitch: 0.4 mm Overall length L: 45 mm Shank dia Ds: 2.8 mm Shank square : 2.1 mm Tapping hole dia : 1.6 mm
