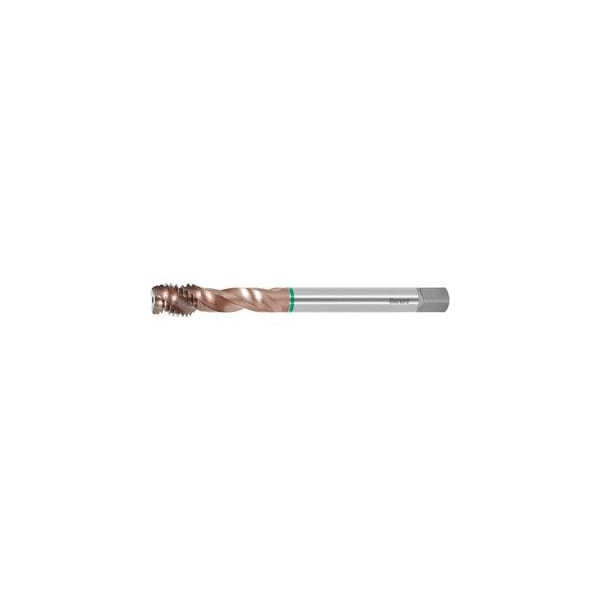

HSS-E-PM Blind Hole Machine Tap, M16 Tap Thread Size, AlTix Coated
Mfr # 135960 M16
Zoro # G209574408
product price:Â
$
99.49
/ea
Key Features
Shank Dia.
12 mm
Tap Material
HSS E PM
Standard
Thread Standard - DIN 13, DIN 376
Overall Length
110 mm
Thread Direction
Right-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 135960 M16
- Zoro #
- G209574408
- UPC #
- 4045197900067
- Country of Origin
- Japan
- Item
- Tap
- Tap Material
- HSS E PM
- Standard
- Thread Standard - DIN 13, DIN 376
- Thread Direction
- Right-Hand
- Number of Flutes
- 3
- Thread Type
- Metric Course
- Application
- up to 2.5xD for Blind Holes
- Thread type
- M
- Helix Angle
- 40°
- Thread Standards
- DIN 13
- Shank Type
- Plain Shank with h9
- Tolerance Class
- ISO 2X 6HX
- Coolant Through
- No
- Series
- Master Tap
- Flank Angle
- 60°
- Finish
- AlTiX
- Ring Color
- Green
- Tool Type
- Machine tap for dynamic machining
- Taper Lead Angle
- 11.3°
- Number of Teeth
- 3
- Taper Lead Form
- C
- Thread Pitch
- 2 mm
- Tolerance
- ISO 2X 6HX
- Number of Clamping Slots
- 3
Description
Universal taps- designed for use in a wide spectrum of materials with high process reliability. - HSS-E-PM tool material for a high degree of wear resistance. - Reduced coefficient of friction due to the new high-performance coating. - Special geometry for optimum swarf evacuation. Corresponds to ISO 2X/6HX. Thread type: M Tool material: HSS E PM Standard: DIN 376 Tolerance class: ISO 2X 6HX Thread pitch: 2 mm Overall length L: 110 mm Shank dia Ds: 12 mm Shank square : 9 mm Tapping hole dia : 14 mm
