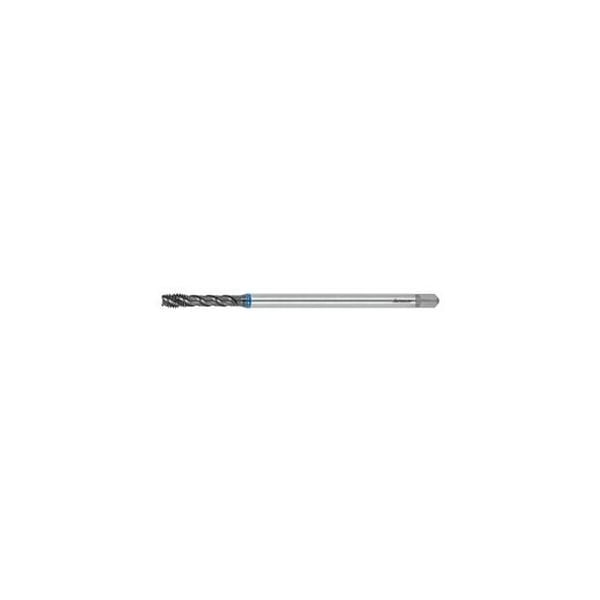

HSS-E-PM Blind Hole Tap for Stainless Steels, Extra Long, M5-0.8 Tap Thread Size, TiAlN Coated
Mfr # 135739 M5
Zoro # G014423694
product price:Â $48.89
/eaKey Features
Shank Dia.
6 mm
Tap Material
HSS E PM
Overall Length
140
Number of Flutes
3
Thread Type
M
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 135739 M5
- Zoro #
- G014423694
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Shank Dia.
- 6 mm
- Overall Length
- 140
Details
- Item
- Tap
- Tap Material
- HSS E PM
- Number of Flutes
- 3
- Thread Type
- M
- Application
- up to 2.5×D for blind holes
Description
High-performance tap, specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. The 45 Deg helix angle of the flutes facilitates chip formation especially in ductile austenitic CrNi steels. HSS-E-PM tool material for a high degree of wear resistance The latest generation of TiALN multi-layer coating Parameterized flute geometry for optimum chip formation and torsional rigidity With extra long shank. Shank to DIN 371. Advantage: Designed for tapping threads where access is difficult. Thread type: M Tool material: HSS E PM Standard: Manufacturer's standard Tolerance class: ISO 2X 6HX Thread pitch: 0.8 mm Overall length L: 140 mm Shank Dia. Ds: 6 mm Shank square: 4.9 mm Tapping hole Dia. 4.2 mm
