Shop GARANT

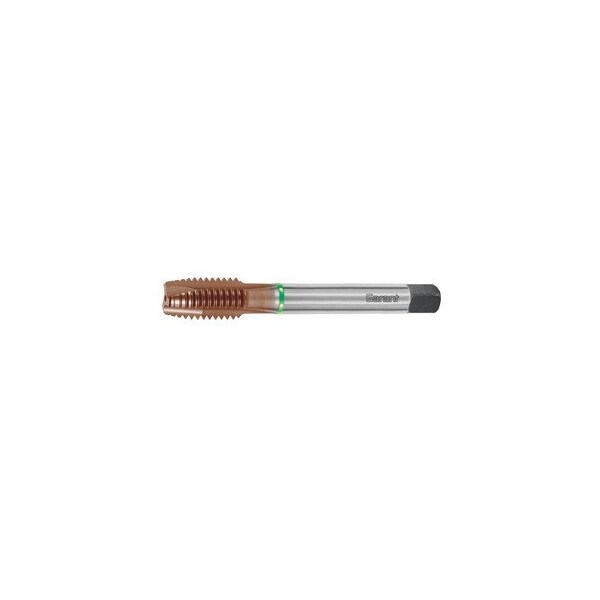

HSS-E-PM Through Hole Machine Tap, 5/8-11 Tap Thread Size, AlTix Coated

  • Mfr # 133360 5/8-11
  • Zoro # G809574419
product price:
$
74.55
/ea

Key Features

Shank Dia.
12 mm
Tap Material
HSS E PM
Standard
DIN 376
Overall Length
110 mm
Thread Direction
Right-Hand
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
133360 5/8-11
Zoro #
G809574419
UPC #
4045197901729
Country of Origin
Japan
Item
Tap
Tap Material
HSS E PM
Standard
DIN 376
Thread Direction
Right-Hand
Number of Flutes
3
Thread Type
UNC
Application
up to 3xD for through Holes
Thread type
UNC
Taper Lead Angle
8°
Tool Type
Machine tap for dynamic machining
Tolerance Class
2BX
Shank Type
Plain Shank with h9
Coolant Through
No
Finish
AlTiX
Ring Color
Green
Threads per Inch
11
Taper Lead Form
B
Number of Teeth
3
Series
Master Tap
Thread Pitch
2.309 mm
Flank Angle
60°
Number of Clamping Slots
3
Tolerance
2BX
Threads per inch
11

Description

GARANT Master Tap universal taps- designed for use in a wide spectrum of materials with high process reliability. - HSS-E-PM tool material for maximum wear resistance. - Reduced coefficient of friction due to the new high-performance coating. - Special geometry for optimum swarf evacuation. Application: For UNC uniform coarse threads ASME - B1.1. Thread type: UNC Tool material: HSS E PM Standard: DIN 376 Threads per inch: 11 Thread dia : 15.88 mm Overall length L: 110 mm Shank dia Ds: 12 mm Shank square : 9 mm Tapping hole dia : 13.5 mm
