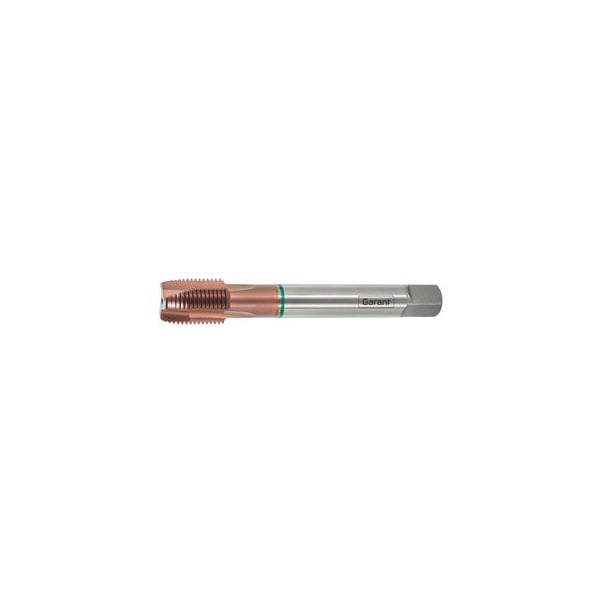

HSS-E-PM Through Hole Machine Tap, 7/16-20 Tap Thread Size, AlTix Coated
- Mfr # 133410 7/16-20
- Zoro # G809574402
product price:Â
$
56.15
/ea
Key Features
Shank Dia.
8 mm
Tap Material
HSS E PM
Standard
DIN 374
Overall Length
100 mm
Thread Direction
Right-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 133410 7/16-20
- Zoro #
- G809574402
- UPC #
- 4045197901859
- Country of Origin
- Japan
- Item
- Tap
- Tap Material
- HSS E PM
- Standard
- DIN 374
- Thread Direction
- Right-Hand
- Number of Flutes
- 3
- Application
- up to 3xD for through Holes
- Thread Type
- UNF
- Thread type
- UNF
- Series
- Master Tap
- Coolant Through
- No
- Thread Pitch
- 1.59 mm
- Flank Angle
- 60°
- Taper Lead Form
- B
- Ring Color
- Green
- Finish
- AlTiX
- Number of Teeth
- 3
- Taper Lead Angle
- 8°
- Tolerance Class
- 2BX
- Threads per Inch
- 20
- Tool Type
- Machine tap for dynamic machining
- Shank Type
- Plain Shank with h9
- Number of Clamping Slots
- 3
- Tolerance
- 2BX
- Threads per inch
- 20
Dimensions
- Shank Dia.
- 8 mm
- Overall Length
- 100 mm
- Thread Length
- 33.33 mm
- Tapping Hole Diameter
- 9.9 mm
- Thread Diameter
- 11.11 mm
- Thread Size
- 7/16-20 UNF
- Shank Square Size
- 6.2 mm
Description
GARANT Master Tap general-purpose tap- designed for use on a wide spectrum of materials with high process reliability. - HSS-E-PM tool material for maximum wear resistance. - Reduced coefficient of friction due to the new high-performance coating. - Special geometry for optimum swarf evacuation. Application: For UNF unified fine threads ASME - B1.1. Thread type: UNF Tool material: HSS E PM Standard: DIN 374 Threads per inch: 20 Thread dia : 11.11 mm Overall length L: 100 mm Shank dia Ds: 8 mm Shank square : 6.2 mm Tapping hole dia : 9.9 mm
