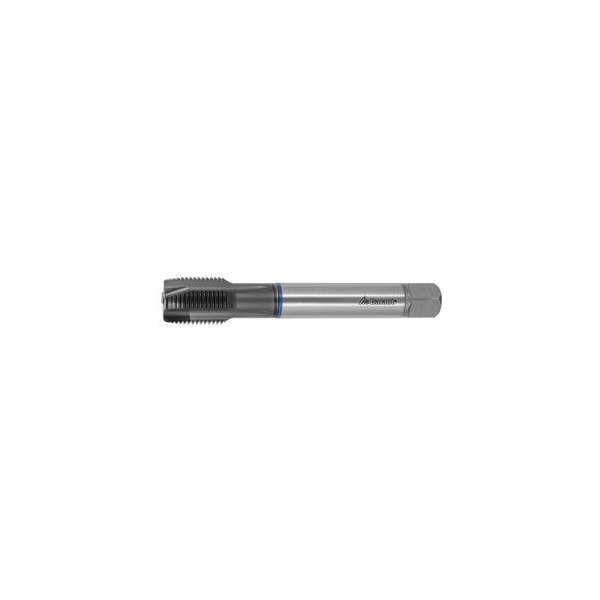

HSS-E-PM Through Hole Machine Tap for Stainless Steel, 1/2-13 Tap Thread Size, TiAlN Coated
Mfr # 133356 1/2-13
Zoro # G809574167
product price:Â
$
54.75
/ea
Key Features
Shank Dia.
9 mm
Tap Material
HSS E PM
Standard
DIN 376
Overall Length
110 mm
Thread Direction
Right-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 133356 1/2-13
- Zoro #
- G809574167
- UPC #
- 4062406209599
- Country of Origin
- Germany
- Item
- Tap
- Tap Material
- HSS E PM
- Standard
- DIN 376
- Thread Direction
- Right-Hand
- Number of Flutes
- 3
- Application
- up to 3xD for through Holes
- Thread Type
- UNC
- Thread type
- UNC
- Coolant Through
- No
- Shank Type
- Plain Shank with h9
- Thread Pitch
- 1.95 mm
- Ring Color
- Blue
- Number of Teeth
- 3
- Tool Type
- Machine tap for dynamic machining
- Taper Lead Form
- B
- Series
- Master Tap
- Taper Lead Angle
- 8°
- Flank Angle
- 60°
- Finish
- TiAlN
- Tolerance Class
- 2BX
- Threads per Inch
- 13
- Threads per inch
- 13
- Tolerance
- 2BX
- Number of Clamping Slots
- 3
Description
High-performance tap- specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. - HSS-E-PM tool material for maximum wear resistance - The latest generation of TiAlN multi-layer coating - Parameterised flute geometry for optimum chip formation and torsional rigidity Application: For UNC uniform coarse threads ASME - B1.1. Thread type: UNC Tool material: HSS E PM Standard: DIN 376 Threads per inch: 13 Thread dia : 12.7 mm Overall length L: 110 mm Shank dia Ds: 9 mm Shank square : 7 mm Tapping hole dia : 10.8 mm
