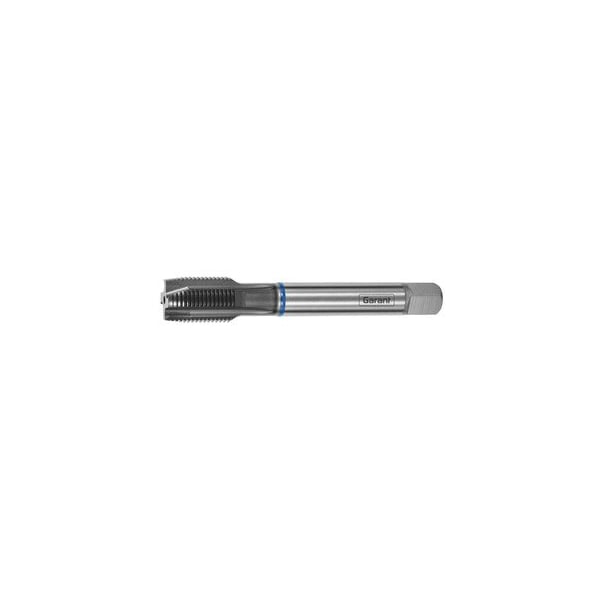

HSS-E-PM Through Hole Machine Tap for Stainless Steel, 1/2-20 Tap Thread Size, TiAlN Coated
Mfr # 133406 1/2-20
Zoro # G109574157
product price:Â $53.39
/eaKey Features
Shank Dia.
9 mm
Tap Material
HSS E PM
Standard
DIN 374
Overall Length
100 mm
Thread Direction
Right-Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
133406 1/2-20
Zoro #
G109574157
UPC #
4062406209742
Country of Origin
Germany
Dimensions
Shank Dia.
9 mm
Overall Length
100 mm
Thread Length
38.1 mm
Shank Square Size
7 mm
Tapping Hole Diameter
11.5 mm
Thread Diameter
12.7 mm
Thread Size
1/2-20 UNF
Description
High-performance tap- specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. - HSS-E-PM tool material for maximum wear resistance - The latest generation of TiAlN multi-layer coating - Parameterised flute geometry for optimum chip formation and torsional rigidity. Application: For UNF uniform fine threads ASME - B1.1. Thread type: UNF Tool material: HSS E PM Standard: DIN 374 Threads per inch: 20 Thread dia : 12.7 mm Overall length L: 100 mm Shank dia Ds: 9 mm Shank square : 7 mm Tapping hole dia : 11.5 mm
