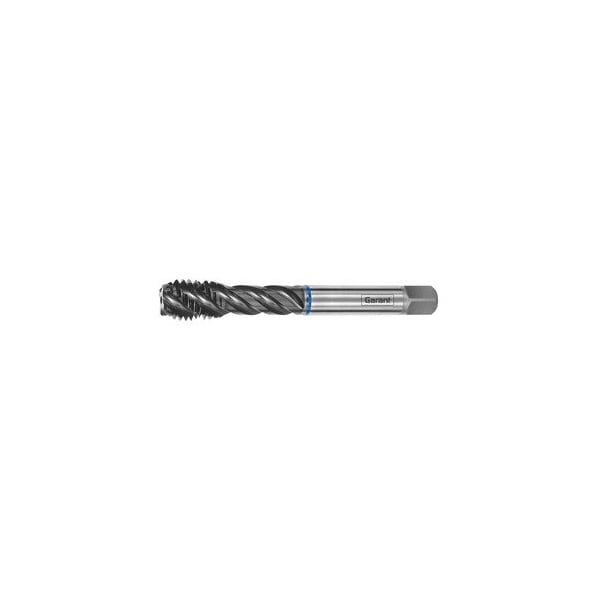

HSS-E-PM Through Hole Machine Tap for Stainless Steel, 5/8-11 Tap Thread Size, TiAlN Coated
Mfr # 137857 5/8-11
Zoro # G409574147
product price: $91.29
/ea
Free Shipping & Returns
Key Features
Shank Dia.
12 mm
Tap Material
HSS E PM
Standard
DIN 376
Overall Length
110 mm
Thread Direction
Right-Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
137857 5/8-11
Zoro #
G409574147
UPC #
4062406210113
Country of Origin
Germany
Dimensions
Shank Dia.
12 mm
Overall Length
110 mm
Thread Length
39.7 mm
Shank Square Size
9 mm
Tapping Hole Diameter
13.5 mm
Thread Diameter
15.88 mm
Thread Size
5/8-11 UNC
Description
High-performance tap- specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. - HSS-E-PM tool material for maximum wear resistance. - The latest generation of TiAlN multi-layer coating. - Parameterised flute geometry for optimum chip formation and rigidity. Application: For UNC uniform coarse threads ASME - B1.1. Thread type: UNC Tool material: HSS E PM Standard: DIN 376 Threads per inch: 11 Thread dia : 15.88 mm Overall length L: 110 mm Shank dia Ds: 12 mm Shank square : 9 mm Tapping hole dia : 13.5 mm
