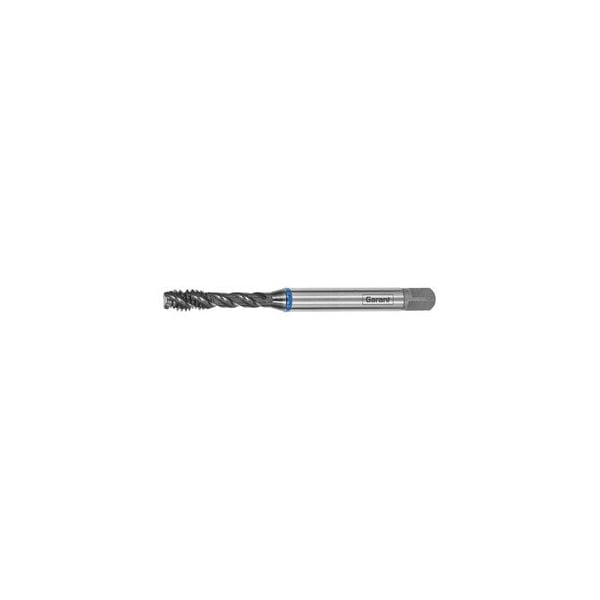

HSS-E-PM Through Hole Machine Tap for Stainless Steel, 8-32 Tap Thread Size, TiAlN Coated
- Mfr # 137857 8-32
- Zoro # G209574200
product price:Â
$
25.85
/ea
Key Features
Shank Dia.
4.5 mm
Tap Material
HSS E PM
Standard
DIN 371
Overall Length
63 mm
Thread Direction
Right-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 137857 8-32
- Zoro #
- G209574200
- UPC #
- 4062406210038
- Country of Origin
- Germany
Dimensions
- Shank Dia.
- 4.5 mm
- Overall Length
- 63 mm
- Thread Length
- 10.4 mm
- Thread Size
- 8-32 UNC
- Thread Diameter
- 4.16 mm
- Shank Square Size
- 3.4 mm
- Tapping Hole Diameter
- 3.5 mm
Description
High-performance tap- specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. - HSS-E-PM tool material for maximum wear resistance. - The latest generation of TiAlN multi-layer coating. - Parameterised flute geometry for optimum chip formation and rigidity. Application: For UNC uniform coarse threads ASME - B1.1. Thread type: UNC Tool material: HSS E PM Standard: DIN 371 Threads per inch: 32 Thread dia : 4.16 mm Overall length L: 63 mm Shank dia Ds: 4.5 mm Shank square : 3.4 mm Tapping hole dia : 3.5 mm
