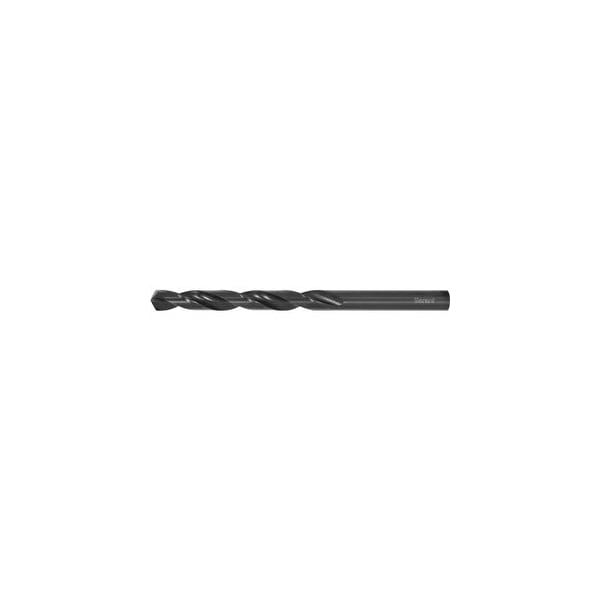

HSS Jobber Drill, Uncoated, 5.7 mm
Mfr # 114150 5,7
Zoro # G309573530
product price: $4.59
/eaSold in multiples of 10 for $45.90
Key Features
Drill Bit Size
5.7 mm
Overall Length
93 mm
Drill Bit Point Angle
118 Degrees
Material
High Speed Steel
Finish
Uncoated
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
114150 5,7
Zoro #
G309573530
UPC #
4045197013040
Country of Origin
Germany
Dimensions
Drill Bit Size
5.7 mm
Overall Length
93 mm
Flute Length
57 mm
Length of Cut
57 mm
Shank Dia.
5.7 mm
Drill Bit Dimension Type
Metric
Maximum Drilling Depth
48.5 mm
Shank Size
5.7 mm
Diameter Tolerance
h8
Diameter
5.7 mm
Details
Item
Jobber Drill
Drill Bit Point Angle
118 Degrees
Material
High Speed Steel
Finish
Uncoated
Shank Type
Plain Shank
Number of Flutes
2
Flute Type
Jobber drill
Standards
DIN 338
Coolant Through
No
Feed in Steel
0.05 mm/rev.
Number of Teeth
2
Ring Color
Without
Type
N
Description
Profile ground: Jobber drill with high pitch accuracy and concentricity as well as precision ground point. Steam tempered from dia 2.4 mm. With point geometry shape C from size 4 mm Recommendation: Maximum drilling depth: L2 = LC - 1.5 x DC. Note: Size 16 - 20: Drills with shank dia 16 mm. Through-coolant: no Standard: DIN 338 Tolerance nominal dia : h8 Point angle: 118 Deg Shank: Plain shank Number of cutting edges Z: 2 recommended maximum drilling depth L2: 48.5 mm Flute length Lc: 57 mm Overall length L: 93 mm Shank dia Ds: 5.7 mm Feed f in steel < 750N/mm2: 0.05 mm/rev.
