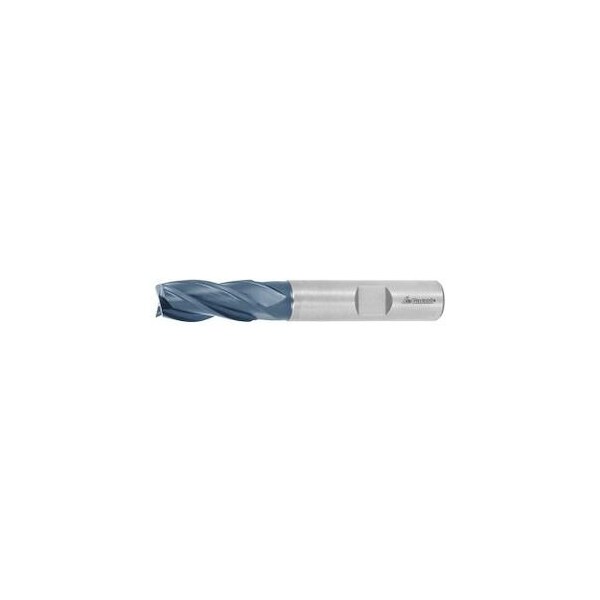

HSS-PM End Mill, TiAlN Coated, 18 mm
Mfr # 191520 18
Zoro # G014373654
product price: $92.55
/ea
Free Shipping & Returns
Key Features
Shank Tolerance
h6
Color Ring
without
Tolerance Nominal Diameter
k10
Correction Factor Fz
1.25
Standard
DIN 844 B
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
191520 18
Zoro #
G014373654
UPC #
-
Country of Origin
Spain
Dimensions
Tolerance Nominal Diameter
k10
Min. Cutting Depth
0.01 mm
Overall Length
92 mm
Milling Diameter
18 mm
Shank Dia.
16 mm
Length of Cut
32 mm
Depth of Cut
32 mm (side milling)
Details
Shank Tolerance
h6
Color Ring
without
Correction Factor Fz
1.25
Standard
DIN 844 B
Type of Product
End Mill
Number of Flutes
6
Cutting Direction
horizontal, oblique and vertical
End Mill Style
Square
Top Corner Chamfer Angle
90 Degrees
Shank Type
DIN 1835 B to h6
Coolant Through
No
Finish
TiAlN
Type
N
Helix Angle
30-40 Degrees
End Mill Material
Powdered Metal
Description
Multi-flute end mill. Eccentric relief ground. For the highest demands in respect to material removal rates. Excellent results when milling dry. Size 6M-25M MID mills: Dimensions to manufacturer's standard, which lies between DIN 844 short and DIN 844 long. Particularly suitable for mould and tool making, as the medium length provides higher rigidity than long series mills to DIN 844.
