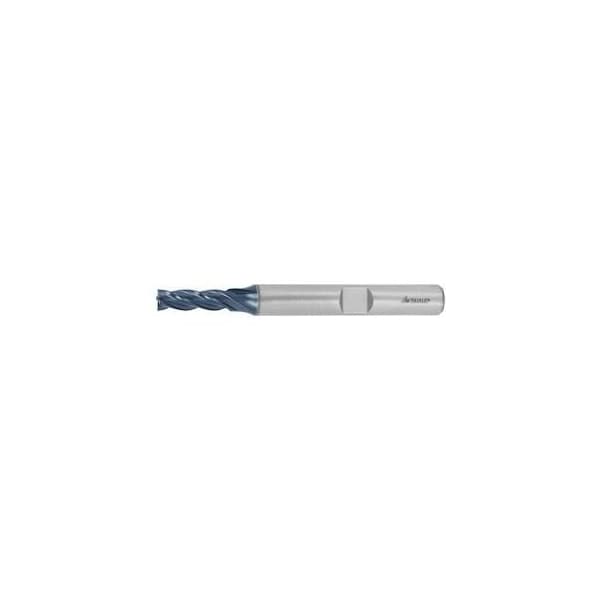

HSS-PM End Mill, TiAlN Coated, 3 mm
Mfr # 191520 3
Zoro # G014373586
product price:Â $23.89
/eaKey Features
Number of Flutes
4
Overall Length
52 mm
Shank Dia.
6 mm
Length of Cut
8 mm
End Mill Style
Square
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
191520 3
Zoro #
G014373586
UPC #
-
Country of Origin
Spain
Dimensions
Overall Length
52 mm
Shank Dia.
6 mm
Length of Cut
8 mm
Tolerance Nominal Diameter
k10
Milling Diameter
3 mm
Min. Cutting Depth
0.01 mm
Depth of Cut
8 mm (side milling)
Details
Number of Flutes
4
End Mill Style
Square
Color Ring
without
End Mill Material
Powdered Metal
Shank Tolerance
h6
Helix Angle
30-40 Degrees
Type of Product
End Mill
Standard
DIN 844 B
Correction Factor Fz
1.25
Type
N
Finish
TiAlN
Coolant Through
No
Cutting Direction
horizontal, oblique and vertical
Top Corner Chamfer Angle
90 Degrees
Shank Type
DIN 1835 B to h6
Description
Multi-flute end mill. Eccentric relief ground. For the highest demands in respect to material removal rates. Excellent results when milling dry. Size 6M-25M MID mills: Dimensions to manufacturer's standard, which lies between DIN 844 short and DIN 844 long. Particularly suitable for mould and tool making, as the medium length provides higher rigidity than long series mills to DIN 844.
