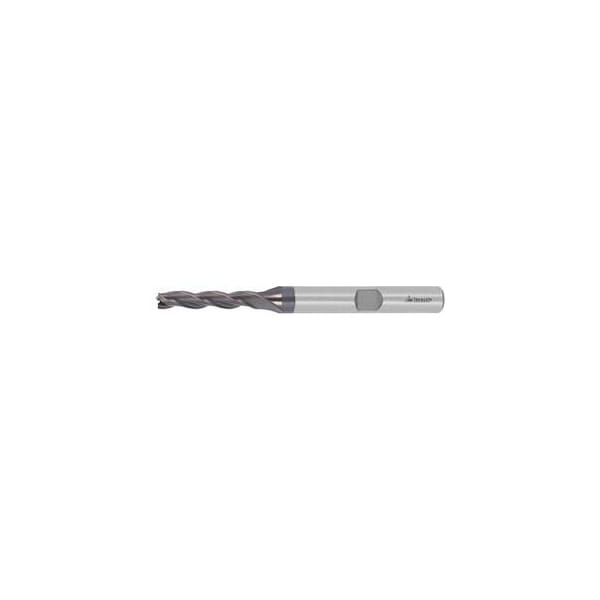

HSS-PM End Mill, TiAlN Coated, 4 mm
- Mfr # 191290 4
- Zoro # G614380908
product price:Â
$
42.25
/ea
Key Features
Material - Machining
Powdered Metal
Cutter Dia.
4 mm
Overall Length
63 mm
Shank Dia.
6 mm
Shank
DIN 1835 B to h6
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 191290 4
- Zoro #
- G614380908
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Cutter Dia.
- 4 mm
- Overall Length
- 63 mm
- Shank Dia.
- 6 mm
- Depth of Cut
- 19 mm (side milling); 2 mm (slot milling from solid)
- Length of Cut
- 19 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 2 mm (slot milling from solid)
- Tolerance Nominal Diameter
- e8
- Min. Cutting Depth
- 0.01 mm
Details
- Material - Machining
- Powdered Metal
- Shank
- DIN 1835 B to h6
- Type
- N
- Finish
- TiAlN
- Flutes
- 3
- Coolant Through
- No
- Type of Product
- End Mill
- Helix Angle
- 30 Degrees
- Direction of infeed
- horizontal, oblique and vertical
- Shank Tolerance
- h6
- Corner Chamfer Angle
- 90 Degrees
- Color Ring
- without
- Standard
- DIN 844 B
- Correction Factor Fz
- 1.25
- End Mill Style
- Square
Description
Center cutting teeth for plunging. Eccentric relief ground. For the most demanding metal removal rates. Note: Suitable for use as a slot drill tolerance e8 or an end mill. 50 % higher metal removal rate than 2 flute slot drills. Larger flutes than multi-flute end mills good for soft material. For milling keyways.
