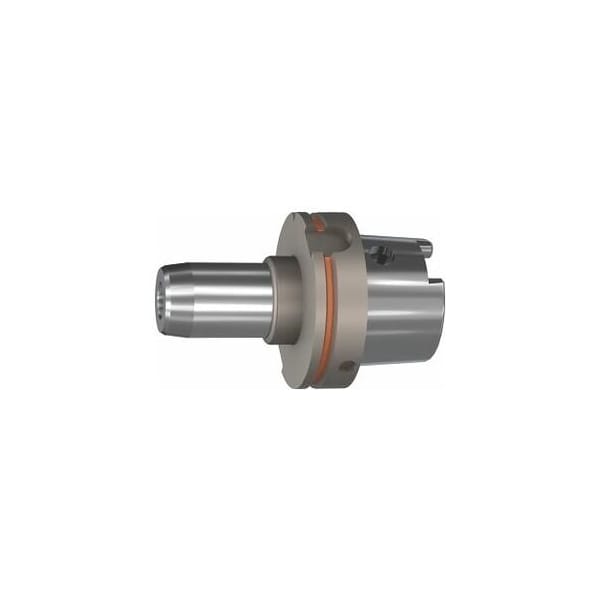

Hydraulic Chuck, Short, Slim, HSK-A 100, Clamping Range: 32mm
Mfr # 307523 32
Zoro # G014776691
product price:Â
$
733.99
/ea
Free Shipping & Returns
Key Features
Suitable Reducing Adapter
302175; 302180; 302177; 302187
Concentricity
≤ 3 µm
Machining Strategy
HSC
Clamping Dia.
32 mm
Outside Dia.
67 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 307523 32
- Zoro #
- G014776691
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Clamping Dia.
- 32 mm
- Outside Dia.
- 67 mm
- Thread Size
- M16x1
- Dia.
- 63 mm
Details
- Suitable Reducing Adapter
- 302175; 302180; 302177; 302187
- Concentricity
- ≤ 3 µm
- Machining Strategy
- HSC
- Item
- Hydraulic clamping chuck
- Balance Quality
- G 2.5 at 25,000 rpm
- Shape
- A
- Coolant Through
- Yes, With Max. 80 Bar
- Balluffchip Bore
- Yes
- Projection
- 110 mm
- Adjustment Travel
- 10 mm
- Adapter
- HSK-A 100
Description
Axial length adjustment, adjustment travel 10 mm. With RFID/Balluffchip bore. Application: High metal removal rate but not for extreme heavy machining. For drilling, reaming, and milling. Note: A-dimension = 200 mm available on request! Clamping Dia D1: 32 mm Overhang dimension A: 110 mm Dia D2: 63 mm External Dia D: 67 mm L2: 62 mm L3: 60 mm
