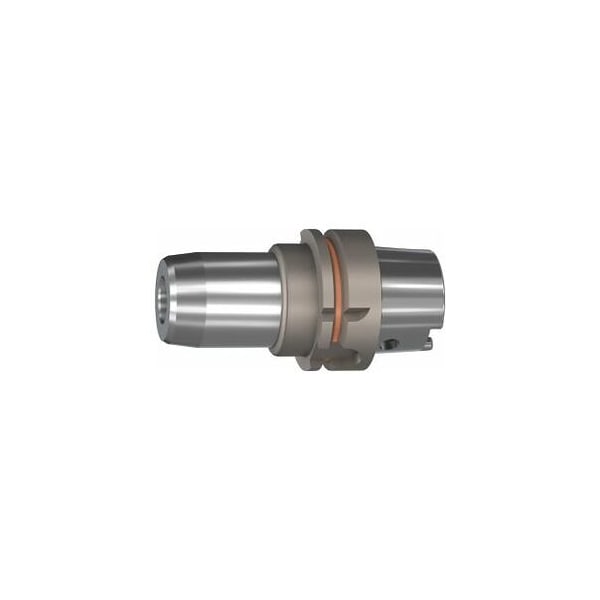

Hydraulic Chuck, Short, Slim, HSK-A 63, Clamping Range: 20mm
Mfr # 307513 20
Zoro # G314776674
product price:Â
$
508.99
/ea
Free Shipping & Returns
Key Features
Projection
90 mm
Concentricity
≤ 3 µm
Machining Strategy
HSC
Dia.
42 mm
Shape
A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 307513 20
- Zoro #
- G314776674
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Dia.
- 42 mm
- Taper Size
- HSK63A
- Outside Dia.
- 50 mm
- Thread Size
- M16x1
- Clamping Dia.
- 20 mm
Details
- Projection
- 90 mm
- Concentricity
- ≤ 3 µm
- Machining Strategy
- HSC
- Shape
- A
- Balluffchip Bore
- Yes
- Balance Quality
- G 2.5 at 25,000 rpm
- Suitable Reducing Adapter
- 302155; 302160; 302165; 302150
- Coolant Through
- Yes, With Max. 80 Bar
- Adjustment Travel
- 10 mm
- Item
- Hydraulic clamping chuck
Description
Axial length adjustment, adjustment travel 10 mm. With RFID/Balluffchip bore. Application: High metal removal rate but not for extreme heavy machining. For drilling, reaming, and milling. Note: A-dimension = 200 mm available on request! Clamping Dia D1: 20 mm Overhang dimension A: 90 mm Dia D2: 42 mm External Dia D: 50 mm L2: 48 mm L3: 51 mm
