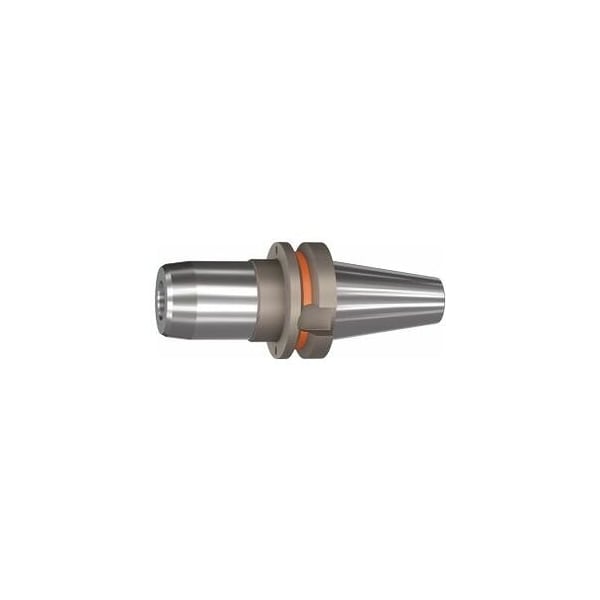

Hydraulic Chuck, Slim, Form ADB, BT 40 short, Clamping Diameter: 20mm
- Mfr # 303825 20
- Zoro # G414774754
product price:Â
$
489.99
/ea
Free Shipping & Returns
Key Features
Projection
90 mm
Balance Quality
G 2.5 at 25,000 rpm
Shape
ADB
Clamping Dia.
20 mm
Concentricity
≤ 3 µm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 303825 20
- Zoro #
- G414774754
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Clamping Dia.
- 20 mm
- Dia.
- 42 mm
- Outside Dia.
- 44.5 mm
Details
- Projection
- 90 mm
- Balance Quality
- G 2.5 at 25,000 rpm
- Shape
- ADB
- Item
- Shrink-fit chucks
- Concentricity
- ≤ 3 µm
- Version
- BT-DC
- Machining Strategy
- HSC
- Adapter
- BT40short
- Coolant Through
- Yes, With Max. 80 Bar
Description
Radial run-out 3 um. Balluffchip bore. Axial length adjustment up to 10 mm available. Flexibility thanks to the use of reducing adapters. Coolant pressure up to 80 bar. Application: For drilling, reaming and finish milling. Optional extras: Pull studs PS No. 308760 308806, reducing sleeves No. 302135 302187. Clamping Dia D1: 20 mm Overhang dimension A: 90 mm a: 1 mm External Dia D: 44.5 mm Dia D2: 42 mm
