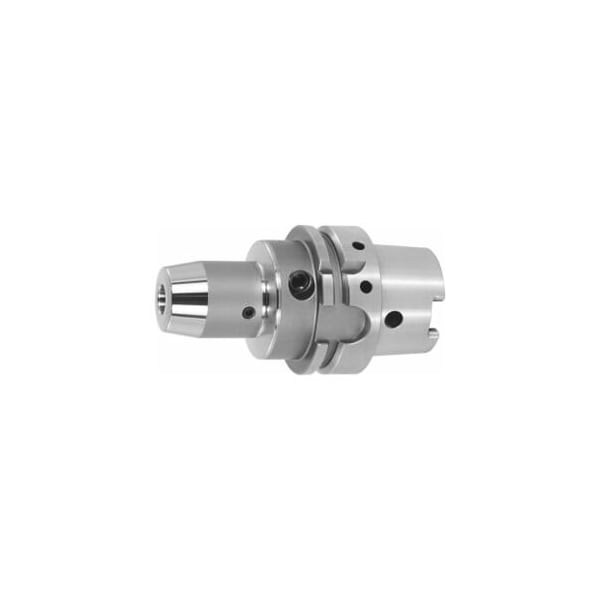

Hydraulic Chuck, Slim, HSK-A 63, Clamping Range: 8mm
- Mfr # 307512 8
- Zoro # G614774882
product price:Â
$
731.99
/ea
Free Shipping & Returns
Key Features
Shape
A
Concentricity
≤ 3 µm
Balance Quality
G 2.5 at 25,000 rpm
Outside Dia.
50 mm
Adapter
HSK-A 63
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 307512 8
- Zoro #
- G614774882
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Outside Dia.
- 50 mm
- Thread Size
- M6
- Dia.
- 28 mm
- Clamping Dia.
- 8 mm
Details
- Shape
- A
- Concentricity
- ≤ 3 µm
- Balance Quality
- G 2.5 at 25,000 rpm
- Item
- Hydraulic clamping chuck
- Adapter
- HSK-A 63
- Projection
- 70 mm
- Adjustment Travel
- 10 mm
- Balluffchip Bore
- Yes
- Coolant Through
- Yes, With Max. 80 Bar
- Machining Strategy
- HSC
Description
Axial length adjustment, adjustment travel 10 mm. With RFID/Balluffchip bore. Application: High metal removal rate but not for extreme heavy machining. For drilling, reaming, and milling. Optional extras: Reducing sleeves No. 302135 - 302187, coolant tube No. 309880, socket wrench No. 309890, parallel wipers No. 343720. Note: A-dimension = 200 mm available on request! Clamping Dia D1: 8 mm Overhang dimension A: 70 mm Dia D2: 28 mm External Dia D: 50 mm L3: 24 mm Adjustment travel V: 10 mm
