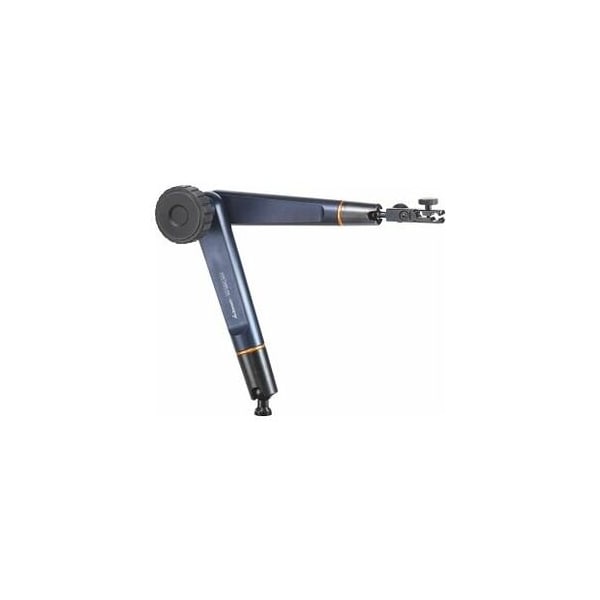

Hydraulic Jointed Measuring Stand Without Magnetic Base, Throat: 400 mm

Hydraulic measuring stand with central clamping, all joints are rigidly clamped by means of the central rotary knob. Oil hydraulics protected against oil leakage by double seals. Clamping force can be steplessly adjusted. Large rubberised hand wheel Diameter 54 mm for easy tightening and releasing the clamp. Jointed arms on the dial indicator mounting rotates 360 Deg, can be twisted 180 Deg and suitable for dial indicators with shank Diameter 6 and 8 mm or dovetail. Callout: Hydraulic central locking with ergonomic handwheel. Fine adjustment at the indicator holder Ball joint Magnetic base in a plastic enclosure Note: Hydraulic stands can withstand large fluctuations in temperature when the clamp is open. However a certain time is required for the temperature of the oil to equalize. When the clamp is closed the maximum fluctuation in temperature without fluctuations in pressure is 15 DegC. These can lead to damage to the stand or to the object that is clamped.
