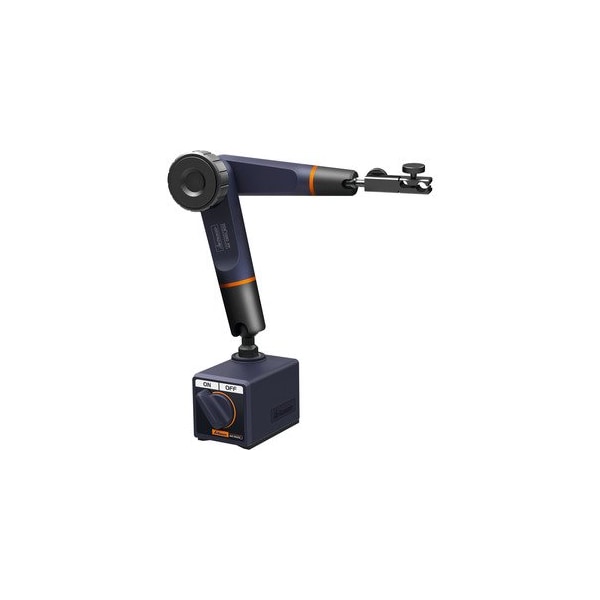

Hydraulic measuring stand with magnetic base- Throat: 400mm

Hydraulic measuring stand with central clamping , all joints are rigidly clamped by means of the central rotary knob. Oil hydraulics protected against oil leakage by double seals. Clamping force can be steplessly adjusted. Large rubberised hand wheel Diameter 54mm for easy tightening and releasing the clamp. Jointed arms on the dial indicator mounting rotates 360Deg , can be twisted 180Deg and suitable for dial indicators with shank Diameter 6 and 8mm or dovetail. Stand with magnetic base with ergonomic rotary switch. High performance ferrite magnet with ground contact faces on the back and ground Vee underneath for placing on shafts and cylindrical bodies. Plastic enclosure of the magnetic base for easy handling, enhanced shock protection and thermal insulation. Note: Hydraulic stands can withstand large fluctuations in temperature when the clamp is open. However a certain time is required for the temperature of the oil to equalise. When the clamp is closed the maximum fluctuation in temperature without fluctuations in pressure is 15 Deg C. These can lead to damage to the stand or to the object that is clamped. Throat: 400 mm Connection thread: M8 Alignment of connecting thread: side Magnetic force: 1000 N Magnetic base length: 75 mm Magnetic base width: 56 mm
