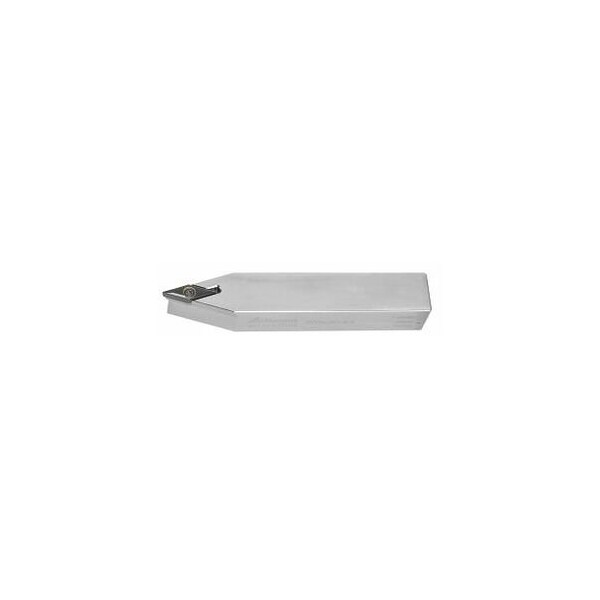

Indexable Turning Toolholder, SVVBN 2525M16, for VB 3 Inserts, Neutral
Mfr # 261111 25/16
Zoro # G314824993
product price: $161.99
/ea
Free Shipping & Returns
Key Features
Insert Assignment
Neutral
Shim
269005 8
ISO Number
SVVBN 2525M16
Insert Size
16 mm
Application
External longitudinal turning
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261111 25/16
Zoro #
G314824993
UPC #
-
Country of Origin
Austria
Dimensions
Insert Size
16 mm
Shank Dia.
25 mm
Size
25/16
Overall Length
150 mm
Details
Insert Assignment
Neutral
Shim
269005 8
ISO Number
SVVBN 2525M16
Application
External longitudinal turning
Setting Angle
72.5 Angle
Insert Shape
35 Degrees Diamond
Shim screw
269013 2
Standards
DIN ISO 5610
Coolant Through
No
Cutting Direction
neutral
Shank Type
QuickTurn Clamping Toolholder
Item
Boring bar
Description
Screw-on toolholder 25/16 mmStandard: DIN ISO 5610 ISO code toolholder: SVVBN 2525M16 suitable indexable insert: VB 1604 Functional width L4 neutral holders: 12.5 mm Overhang L1 neutral holders: 39 mm Overall length L neutral holders: 150 mm Pack of insert screws: 269028 2
