  9. Insert for High Feed Rate Milling Cutter, XDMT120516ZDER, for Inconel

This item is Discontinued.

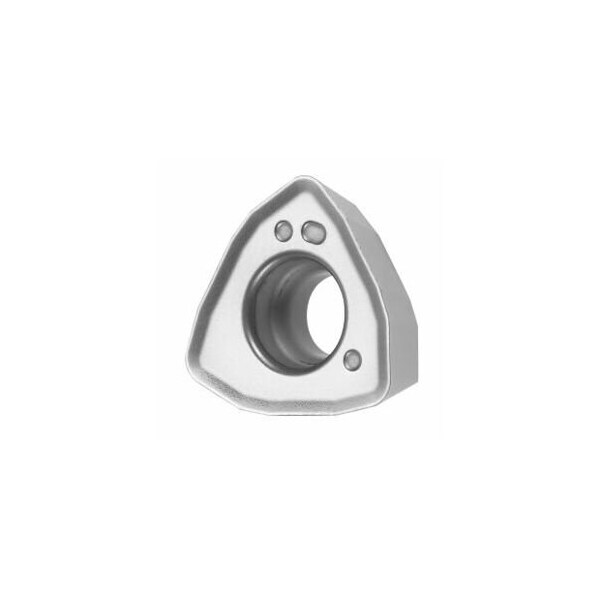

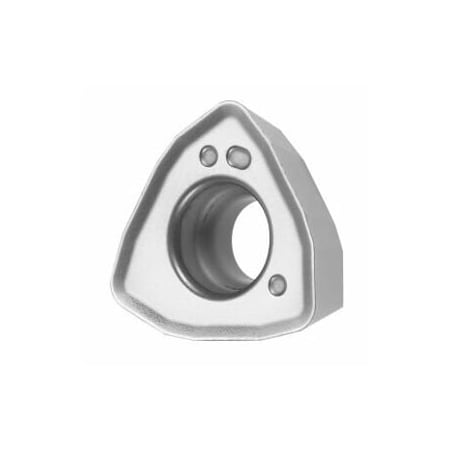

Garant Insert for High Feed Rate Milling Cutter, XDMT120516ZDER, for Inconel 212897 S

Insert for High Feed Rate Milling Cutter, XDMT120516ZDER, for Inconel (Discontinued)

  • Mfr # 212897 S
  • Zoro # G916115611
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
212897 S
Zoro #
G916115611
UPC #
-
Country of Origin
Japan

Dimensions

Insert Thickness
5.56 mm
Min. Cutting Depth
0.35 mm
Corner Radius
1.6 mm
Max. Cutting Depth
2 mm

Details

Insert Material
Carbide
Grade
HB4420
Coating
PVD
Item
Indexable insert for milling
Insert Type
XDMT120516ZDER
Number of Changes/Inserts
3
Feed Per Tooth
0.5 mm
Type
S
Indexable insert clearance angle
15°
Correction Factor
2.5

Description

Note: Standard application values for ae = 0.5...1xD / ap max Programming radius at ap max: 3 mm Feed fz per tooth: 0.5 mm Insert thickness S: 5.56 mm
