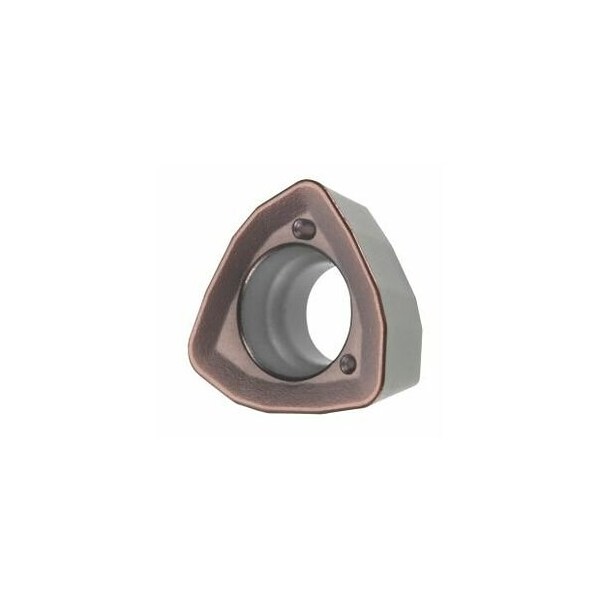

Insert for High Feed Rate Milling Cutter, XOMT060310ZZER, General Purpose
Mfr # 212854 UNI
Zoro # G316115693
product price: $15.79
/eaKey Features
Insert Type
XOMT060310ZZER
Insert Material
Carbide
Insert Thickness
3.18 mm
Grade
HB415
Number of Changes/Inserts
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
212854 UNI
Zoro #
G316115693
UPC #
-
Country of Origin
Japan
Dimensions
Insert Thickness
3.18 mm
Max. Cutting Depth
1 mm
Min. Cutting Depth
0.1 mm
Corner Radius
1 mm
Details
Item
Indexable insert for milling
Insert Type
XOMT060310ZZER
Insert Material
Carbide
Grade
HB415
Number of Changes/Inserts
3
Correction Factor
2.5
Indexable insert clearance angle
13°
Type
UNI
Description
Note: Standard application values for ae = 0.5...1xD / ap max Programming radius at ap max: 2 mm Insert thickness S: 3.18 mm
