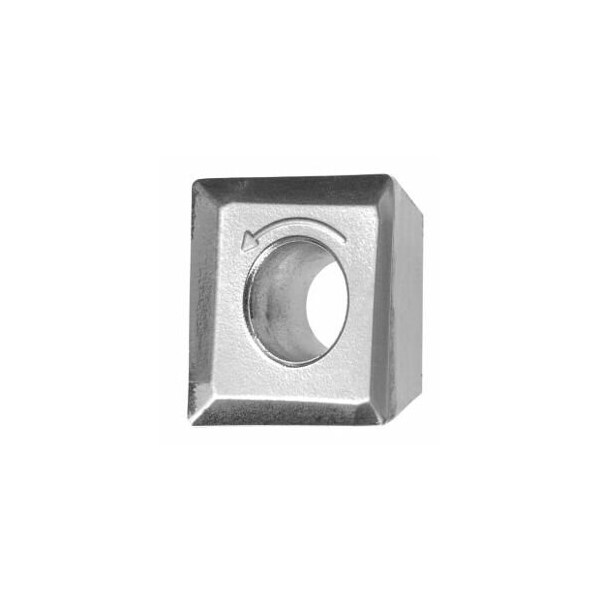

Inserts for 90 Degree Milling Cutters, SOMT 09T304 FR, for Aluminum
Mfr # 215065 ALU
Zoro # G616120700
product price: $20.69
/eaKey Features
Insert Material
Carbide
Type
ALU
Grade
HU7710
Insert Type
SOMT 09T304 FR
Insert Thickness
3.97 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215065 ALU
Zoro #
G616120700
UPC #
-
Country of Origin
Sweden
Dimensions
Insert Thickness
3.97 mm
Corner Radius
0.4 mm
Min. Cutting Depth
0.05 mm
Details
Insert Material
Carbide
Type
ALU
Grade
HU7710
Insert Type
SOMT 09T304 FR
Item
Indexable insert for milling
Indexable insert clearance angle
18°
Feed Per Tooth
0.13 mm
Correction Factor
2.5
Number of Changes/Inserts
4
Description
Version: Extremely strong inserts to the standard ISO dimensions- precision sintered and ground. High strength and wear resistance due to micro-grain structure. Note: Standard application values for ae = 0.3xD / ap max = 5 mm. Corner radius: 0.4 mm Feed fz per tooth: 0.13 mm
