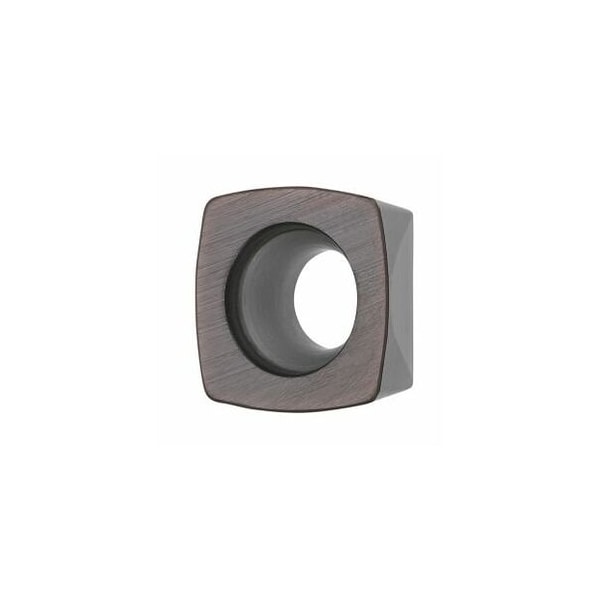

Inserts for FeedKing Face Mills, XDLW 09T308 TN, for Hard Machining
Mfr # 212955 HART
Zoro # G816120722
product price: $18.35
/eaKey Features
Insert Material
Carbide
Corner Radius
0.8 mm
Insert Type
XDLW 09T308 TN
Type
HART
Insert Thickness
9 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
212955 HART
Zoro #
G816120722
UPC #
-
Country of Origin
Italy
Dimensions
Corner Radius
0.8 mm
Insert Thickness
9 mm
Min. Cutting Depth
0.2 mm
Max. Cutting Depth
1.15 mm
Details
Item
Indexable insert for milling
Insert Material
Carbide
Insert Type
XDLW 09T308 TN
Type
HART
Grade
HB7705
Correction Factor
2.5
Indexable insert clearance angle
15°
Number of Changes/Inserts
4
Feed Per Tooth
0.43 mm
Description
Note: Standard application values for ae = 0.5 ... 1xD / ap max Feed fz per tooth: 0.43 mm ISO code indexable insert: XDLW 09T308 TN Type: HART Corner radius: 0.8 mm Programming radius at ap max: 1.99 mm
