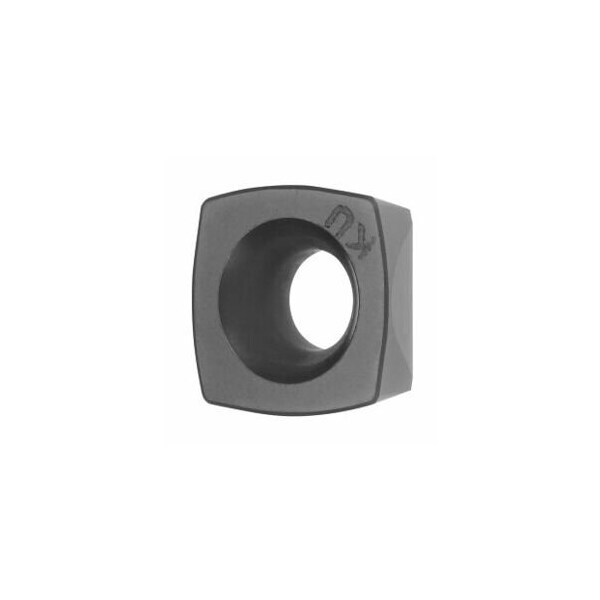

Inserts for FeedKing Face Mills, XDLW 120408 TN, for Cast Iron
Mfr # 212991 GGG
Zoro # G816120548
product price:Â
$
31.79
/ea
Key Features
Insert Material
Ceramic
Corner Radius
0.8 mm
Insert Type
XDLW 120408 TN
Grade
KU7710
Type
GGG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212991 GGG
- Zoro #
- G816120548
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Corner Radius
- 0.8 mm
- Insert Thickness
- 4.76 mm
- Max. Cutting Depth
- 1 mm
- Min. Cutting Depth
- 0.3 mm
Details
- Item
- Indexable insert for milling
- Insert Material
- Ceramic
- Insert Type
- XDLW 120408 TN
- Grade
- KU7710
- Type
- GGG
- Number of Changes/Inserts
- 4
- Feed Per Tooth
- 0.57 mm
- Correction Factor
- 2.5
- Indexable insert clearance angle
- 15°
Description
Note: Standard application values for ae = 0.5 ... 1xD / ap max Do not tighten insert screw No. 219800 to more than 3.8 Nm! Feed fz per tooth: 0.57 mm ISO code indexable insert: XDLW 120408 TN Type: GGG Corner radius: 0.8 mm Programming radius at ap max: 2.6 mm
