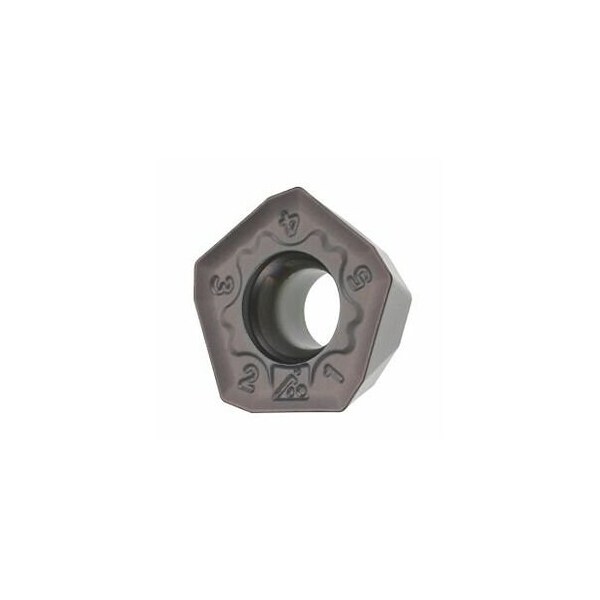

Inserts for Hi5 Milling Cutter, POMX 0704ZEER M, for Stainless Steel
Mfr # 213137 INOX
Zoro # G116120491
product price:Â $16.65
/eaKey Features
Insert Material
Carbide
Insert Thickness
4.76 mm
Insert Type
POMX 0704ZEER M
Type
INOX
Grade
HB9645
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213137 INOX
- Zoro #
- G116120491
- UPC #
- -
- Country of Origin
- Czechia
Dimensions
- Insert Thickness
- 4.76 mm
- Min. Cutting Depth
- 0.18 mm
Details
- Item
- Indexable insert for milling
- Insert Material
- Carbide
- Insert Type
- POMX 0704ZEER M
- Type
- INOX
- Grade
- HB9645
- Feed Per Tooth
- 0.9 mm
- Indexable insert clearance angle
- 15°
- Number of Changes/Inserts
- 5
- Correction Factor
- 2.5
Description
Version: Flat cutting edge length: 1.5 mm- for high surface quality. Preferred solution for difficult applications interrupted cutting. Note: Standard application values for ae = 0.5 ... 1xD / ap max = 1.4 mm. Programming radius at ap max: 3.61 mm Feed fz per tooth: 0.9 mm
