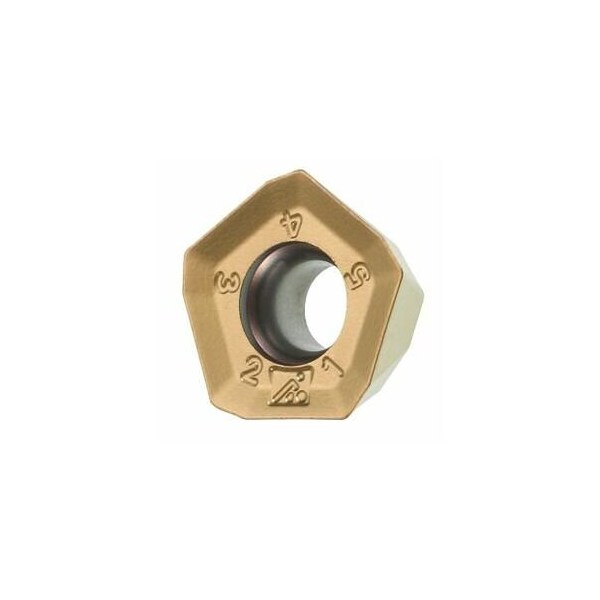

Inserts for Hi5 Milling Cutter, POMX 0704ZEER U, General Purpose
Mfr # 213144 UNI
Zoro # G316120512
product price:Â
$
18.35
/ea
Key Features
Insert Material
Carbide
Grade
HB9540
Insert Thickness
4.76 mm
Type
UNI
Insert Type
POMX 0704ZEER U
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213144 UNI
- Zoro #
- G316120512
- UPC #
- -
- Country of Origin
- Czechia
Dimensions
- Insert Thickness
- 4.76 mm
- Min. Cutting Depth
- 0.18 mm
Details
- Item
- Indexable insert for milling
- Insert Material
- Carbide
- Grade
- HB9540
- Type
- UNI
- Insert Type
- POMX 0704ZEER U
- Number of Changes/Inserts
- 5
- Correction Factor
- 2.5
- Indexable insert clearance angle
- 15°
Description
Version: Flat cutting edge length: 1.5 mm- for high surface quality. Preferred solution for difficult applications interrupted cutting. Note: Standard application values for ae = 0.5 ... 1xD / ap max = 1.4 mm. Programming radius at ap max: 3.61 mm
